MCKEB

Features Provides hose break protection, prevents loads from drifting and positively locks pressurized loads. Extremely low leakage. The seat and poppet are heat treated for long life. If the load drifts due to the valve, the seat has probably been damaged by contamination and the valve should be replaced. Standard unsealed pilot allows air trapped in the pilot line to be purged from the circuit.

You can send us an email：

sales1@meric.cn

sales2@meric.cn

MESSAGE

Product Details

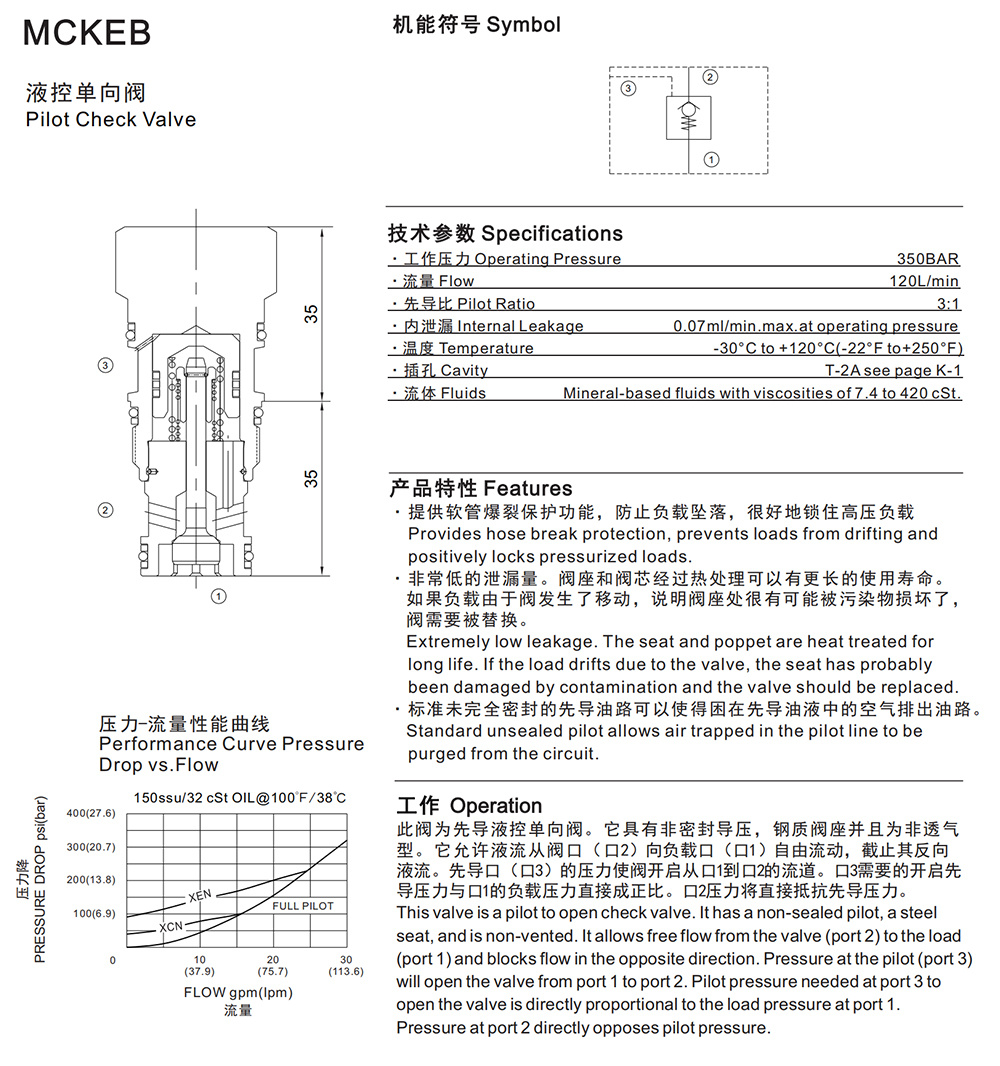

MCKEB MCKEB

Specifications

Operating Pressure 350BAR

Flow 120L/min

Pilot Ratio 3:1

Internal Leakage 0.07ml/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity T-2A see page K-1

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Provides hose break protection, prevents loads from drifting and

positively locks pressurized loads.

Extremely low leakage. The seat and poppet are heat treated for

long life. If the load drifts due to the valve, the seat has probably

been damaged by contamination and the valve should be replaced.

Standard unsealed pilot allows air trapped in the pilot line to be

purged from the circuit.

Operation

This valve is a pilot to open check valve. It has a non-sealed pilot, a steel

seat, and is non-vented. It allows free flow from the valve (port 2) to the load

(port 1) and blocks flow in the opposite direction. Pressure at the pilot (port 3)

will open the valve from port 1 to port 2. Pilot pressure needed at port 3 to

open the valve is directly proportional to the load pressure at port 1.

Pressure at port 2 directly opposes pilot pressure.
