MCOFA-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Directional valve

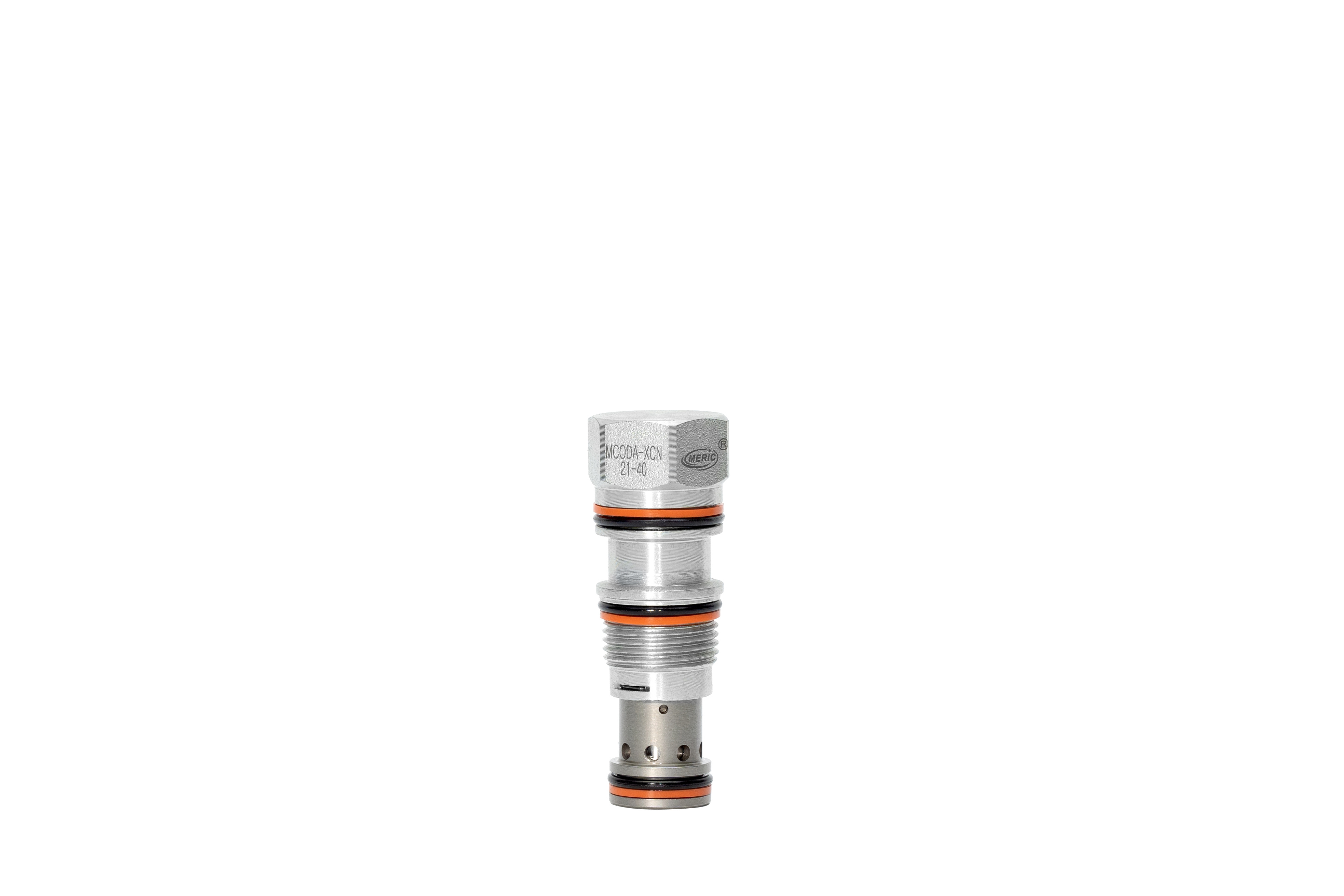

MCOFA

Features Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss. Pressure at the port 2 area directly opposes pilot pressure. Reverse flow through the valve from port 2 to port 1 is not possible under any condition.

You can send us an email：

Product Details

Specifications

Operating Pressure 350BAR

Flow 160L/min

Pilot Ratio 1.8:1

Internal Leakage 0.07ml/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity T-2A see page K-1

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi

(70 bar) at the pilot port will close a valve against a pressure of

1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could

allow the valve to open, even if it is a momentary decay or loss.

Pressure at the port 2 area directly opposes pilot pressure.

Reverse flow through the valve from port 2 to port 1 is not possible

under any condition.

Operation

This valve is a spring biased closed, pilot-to-close check cartridge that has

a 1.8:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks

reverse flow. Pressure at the pilot port opposes pressure at port 1 at a ratio

of 1.8:1. This valve is most often used in regeneration circuits.

None
