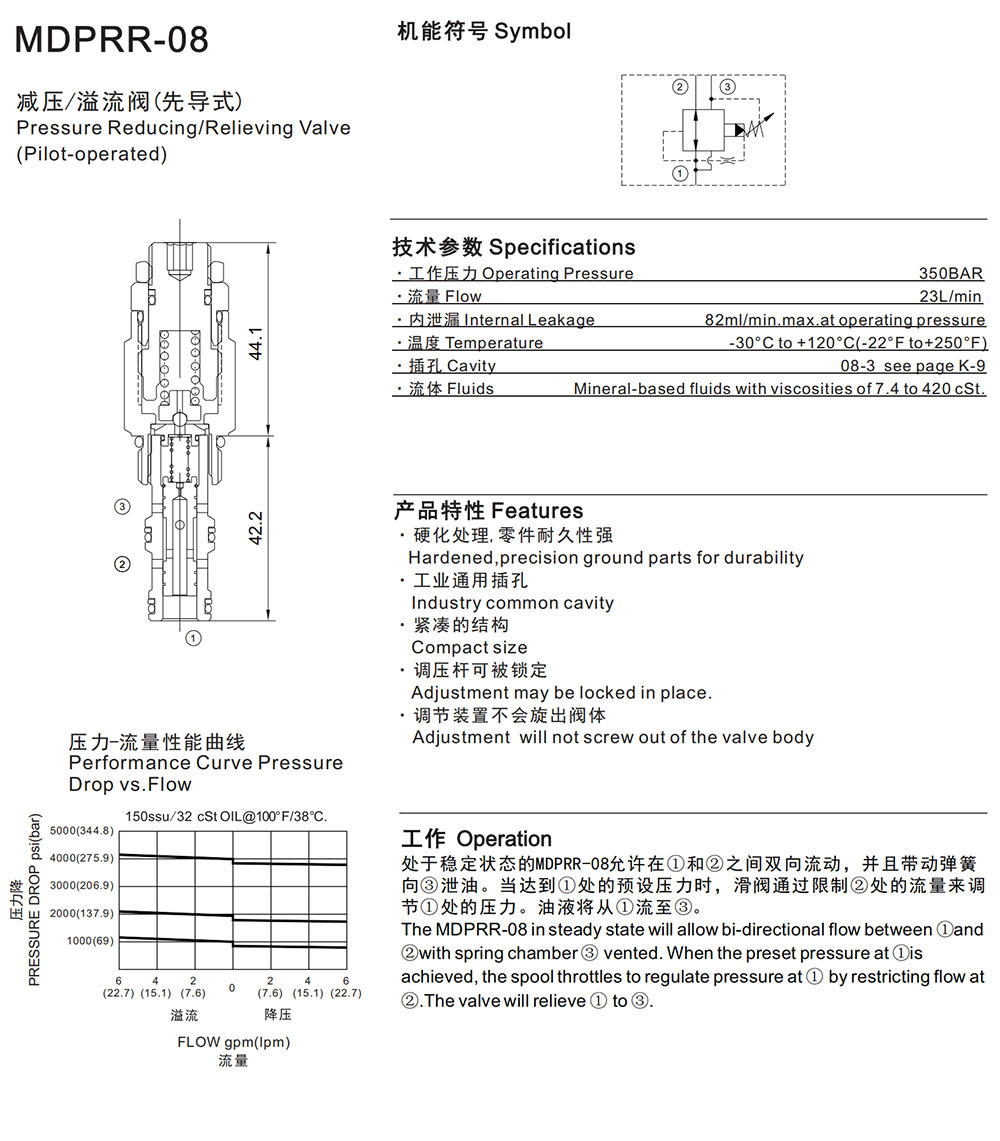

Operating Pressure 350BAR
Internal Leakage 82ml/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity 08-3 see page K-9
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Hardened,precision ground parts for durability
Industry common cavity
Adjustment may be locked in place.
Adjustment will not screw out of the valve body
The MDPRR-08 in steady state will allow bi-directional flow between ①and
②with spring chamber ③ vented. When the preset pressure at ①is
achieved, the spool throttles to regulate pressure at ① by restricting flow at
②.The valve will relieve ① to ③.
