Category:

Cartridge valve

Pressure control valve

Relief valve

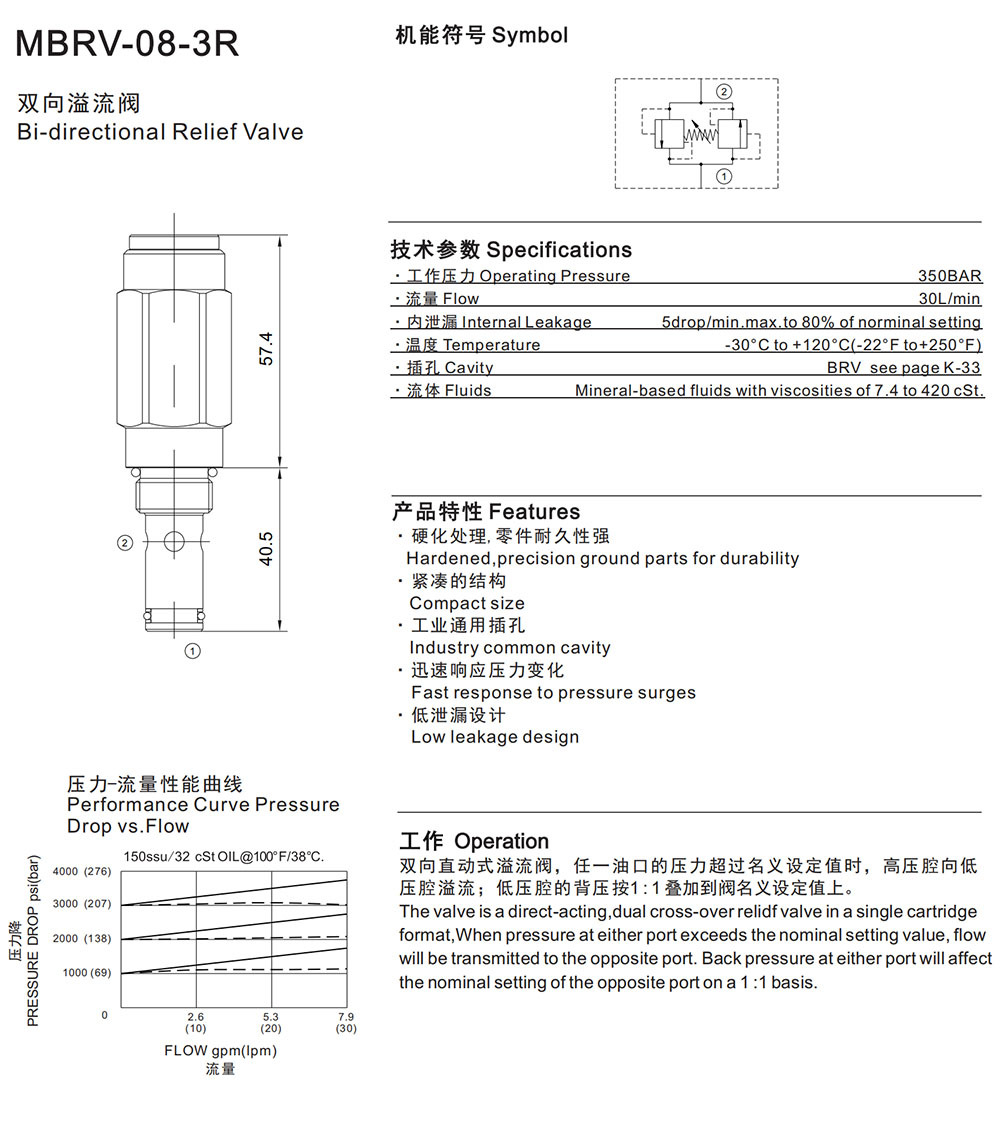

MBRV-08-3R


Features Hardened,precision ground parts for durability Compact size Industry common cavity Fast response to pressure surges Low leakage design


You can send us an email:

sales1@meric.cn

sales2@meric.cn

Product Details


MBRV-08-3RMBRV-08-3R

Specifications
Operating Pressure 350BAR
Flow 30L/min
Internal Leakage 5drop/min.max.to 80% of norminal setting
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity BRV see page K-33
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
Hardened,precision ground parts for durability
Compact size
Industry common cavity
Fast response to pressure surges
Low leakage design
Operation
The valve is a direct-acting,dual cross-over relidf valve in a single cartridge
format,When pressure at either port exceeds the nominal setting value, flow
will be transmitted to the opposite port. Back pressure at either port will affect
the nominal setting of the opposite port on a 1 :1 basis.
