MPRVC60-A

Features Hardened,precision ground parts for durability Compact size Adjustment may be locked in place Fast response to pressure surges Low leakage design

You can send us an email：

Product Details

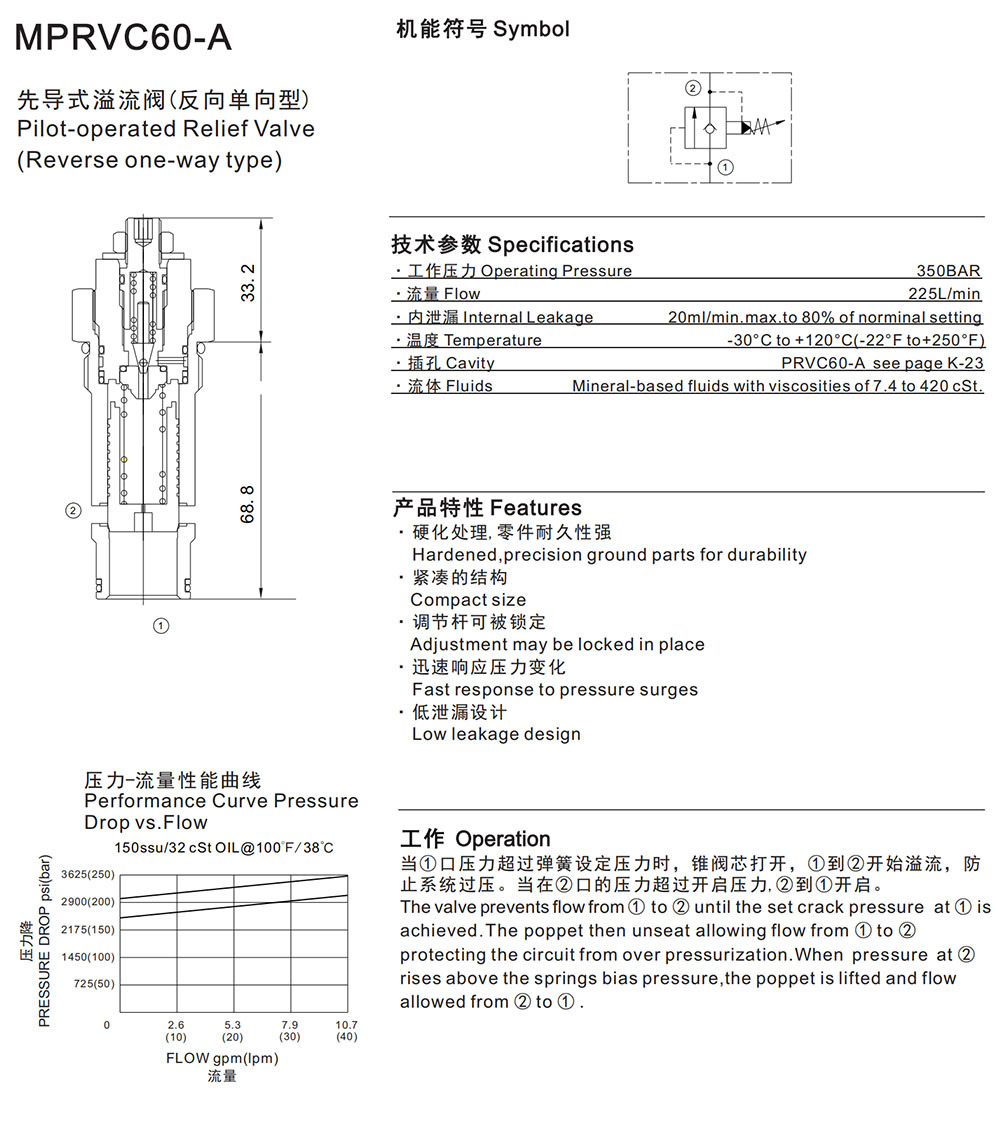

MPRVC60-A

Specifications

Operating Pressure 350BAR

Flow 225L/min

Internal Leakage 20ml/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity PRVC60-A see page K-23

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Compact size

Adjustment may be locked in place

Fast response to pressure surges

Low leakage design

Operation

The valve prevents flow from ① to ② until the set crack pressure at ① is

achieved.The poppet then unseat allowing flow from ① to ②

protecting the circuit from over pressurization.When pressure at ②

rises above the springs bias pressure,the poppet is lifted and flow

allowed from ② to ① .
