MYF10-01

Features Hardened,precision ground parts for durability. Will accept maximum pressure at port 2;suitable for use in cross port relief circuits. Fast response to pressure surges. Adjustment may be locked in place.

You can send us an email：

Product Details

MYF10-01

Specifications

Operating Pressure 315BAR

Flow 60L/min

Internal Leakage 30ml/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

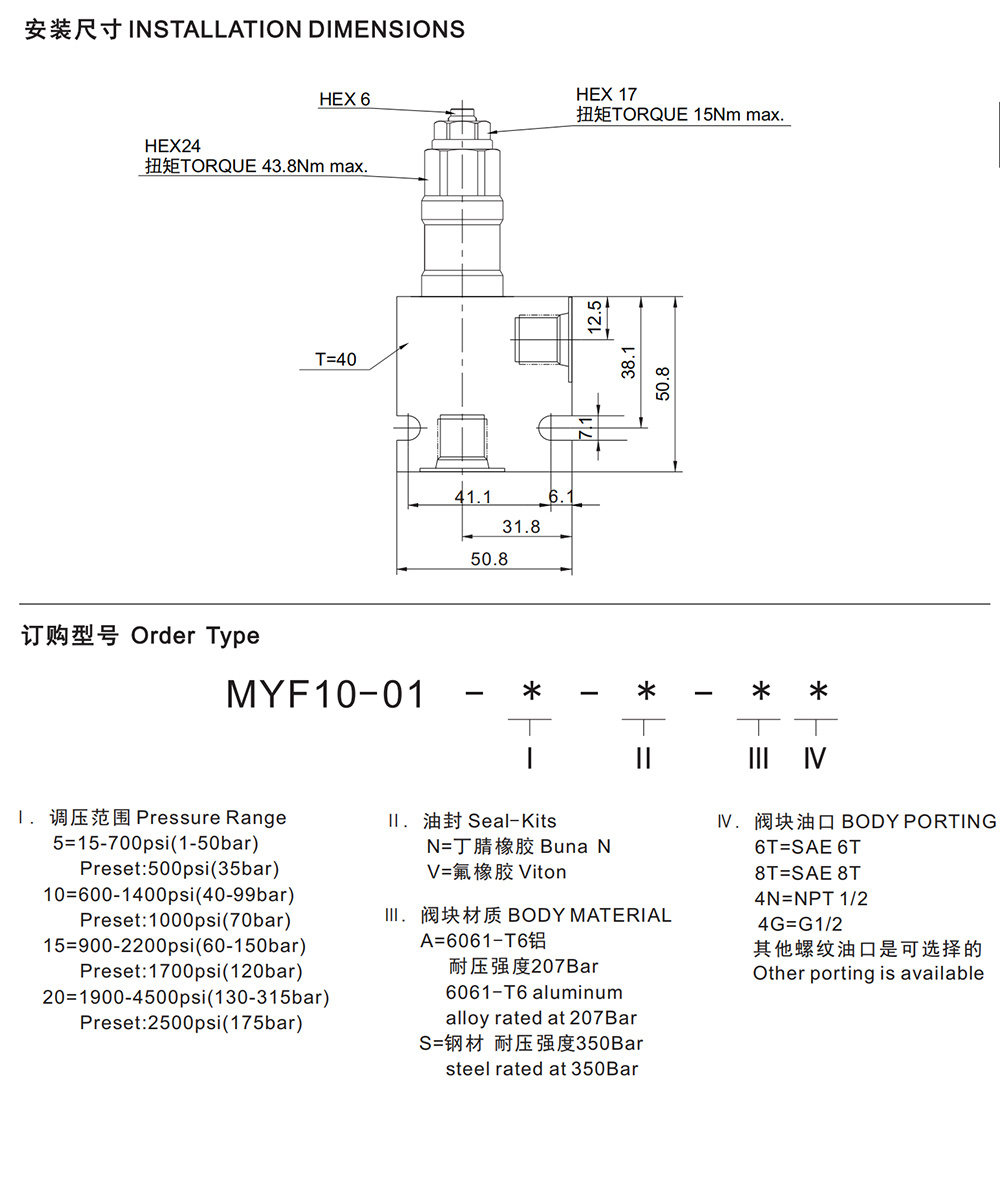

Cavity T-2301 see page K-17

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability.

Will accept maximum pressure at port 2;suitable for use in cross port

relief circuits.

Fast response to pressure surges.

Adjustment may be locked in place.

Operation

The valve prevents flow from ① to ② until the set crack pressure at ① is

achieved.The poppet then unseat allowing flow from ① to ②

protecting the circuit from over pressurization.
