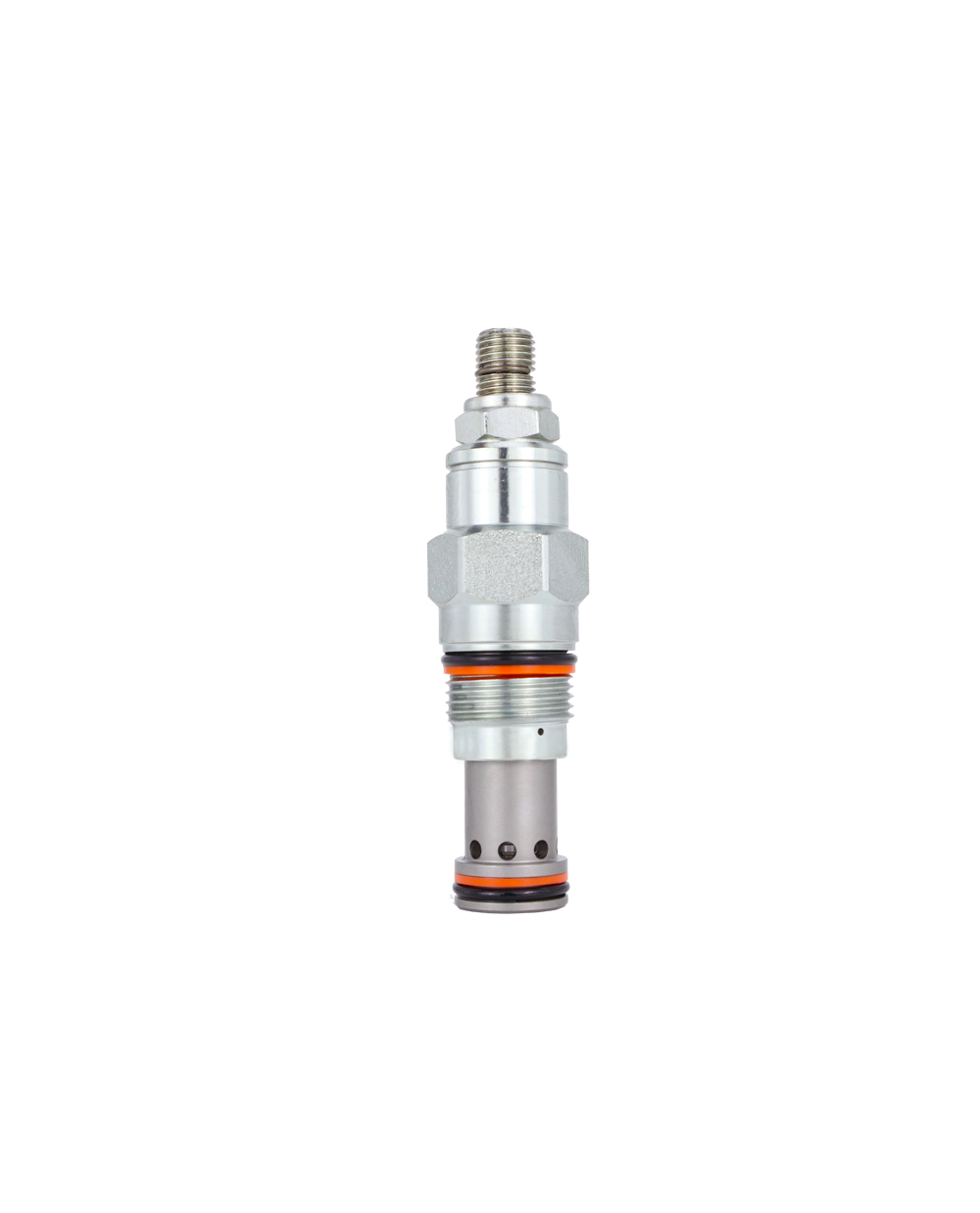

MRPEE

Features Main stage orifice is protected by a stainless steel screen Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio. Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.

You can send us an email：

sales1@meric.cn

sales2@meric.cn

MESSAGE

Product Details

MRPEE MRPEE

Specifications

Operating Pressure 350BAR

Flow 95L/min

Response Time - Typical 2ms

Internal Leakage 30ml/min.max.at 70bar

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity T-10A see page K-2

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Main stage orifice is protected by a stainless steel screen

Back pressure on the tank port (port 2) is directly additive to the

valve setting at a 1:1 ratio.

Will accept maximum pressure at port 2; suitable for use in cross

port relief circuits. If used in cross port relief circuits, consider

spool leakage.

Operation

Fast-acting, pilot-operated, balanced piston relief cartridges are normally

closed, pressure-limiting Valve used to protect hydraulics components

from pressure transients. Fast opening and closing is gained at the expense

of smoothness. When the pressure at the inlet (port 1) reaches the valve

setting, the valve starts to open to tank (port 2), throttling flow to limit the

pressure rise. These Valves have low pressure rise vs. flow and are very fast.
