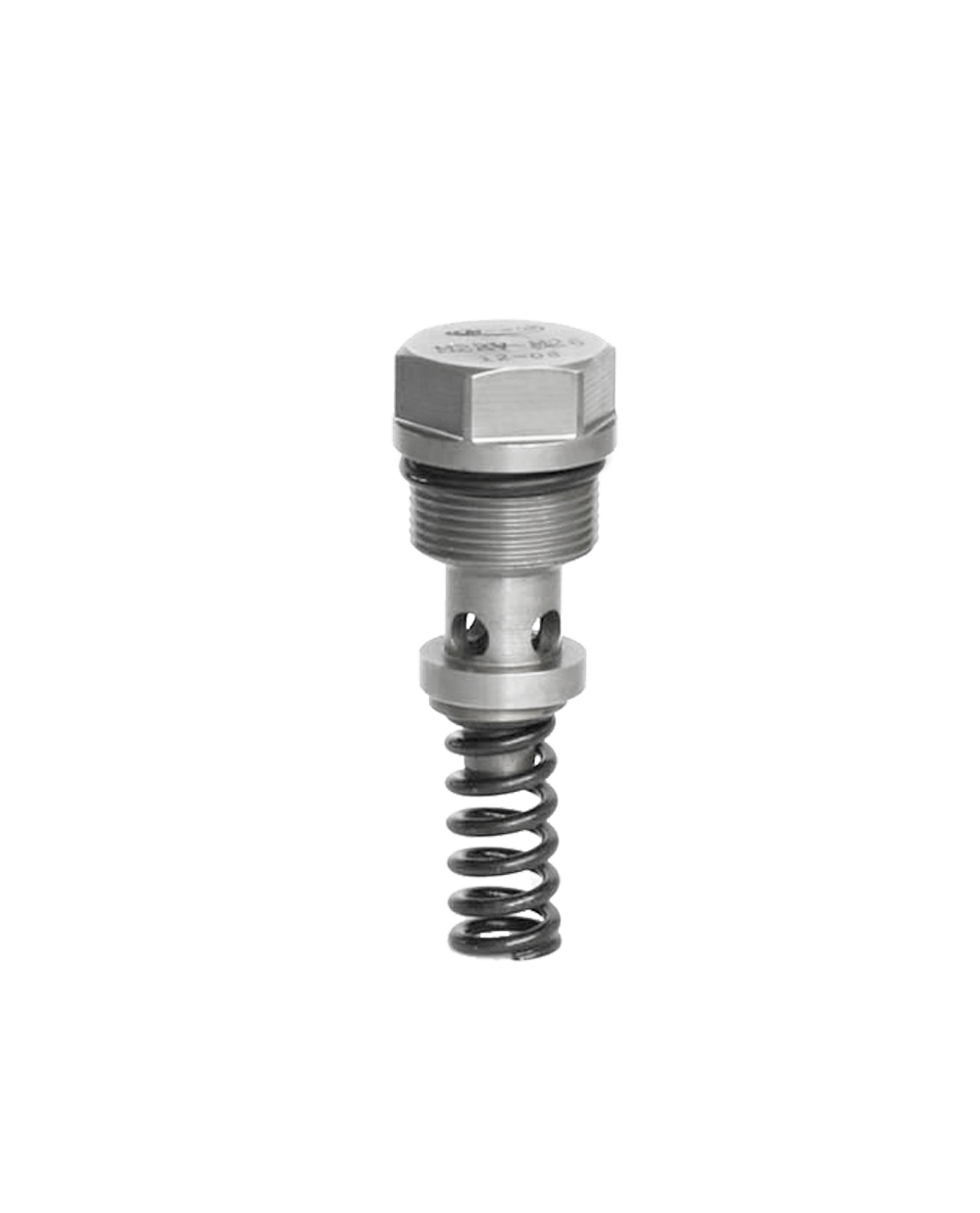

MBRV-M26

Features Hardened,precision ground parts for durability Compact size Fast response to pressure surges

You can send us an email：

sales1@meric.cn

sales2@meric.cn

MESSAGE

Product Details

MBRV-M26

Specifications

Operating Pressure 350BAR

Flow 28L/min

Internal Leakage 30ml/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 见图

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Compact size

Fast response to pressure surges

Operation

The valve prevents flow from ① to ② until the set crack pressure at ① is

achieved.The poppet then unseat allowing flow from ① to ②

protecting the circuit from over pressurization.
