MDRV-10S

Features Hardened,precision ground parts for durability Compact size Adjustment may be locked in place Low leakage design Fast response to pressure surges

You can send us an email：

sales1@meric.cn

sales2@meric.cn

MESSAGE

Product Details

MDRV-10S

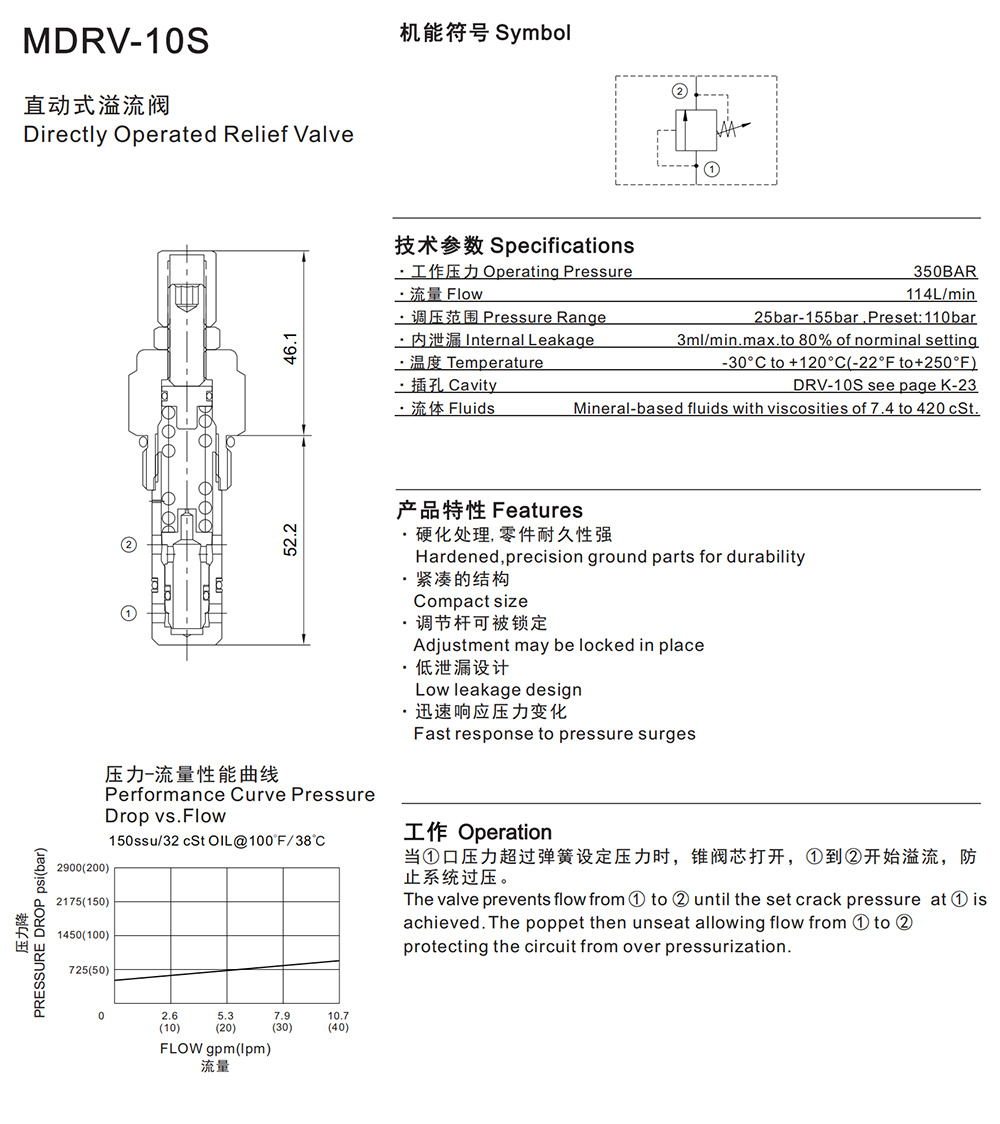

Specifications

Operating Pressure 350BAR

Flow 114L/min

Pressure Range 25bar-155bar ,Preset:110bar

Internal Leakage 3ml/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity DRV-10S see page K-23

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Compact size

Adjustment may be locked in place

Low leakage design

Fast response to pressure surges

Operation

The valve prevents flow from ① to ② until the set crack pressure at ① is

achieved.The poppet then unseat allowing flow from ① to ②

protecting the circuit from over pressurization.
