Operating Pressure 250BAR
Internal Leakage 5ml/min.max.to 80% of norminal setting
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity RV-SDV70 see page K-26
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Hardened,precision ground parts for durability
Adjustment may be locked in place
Low leakage design
Fast response to pressure surges

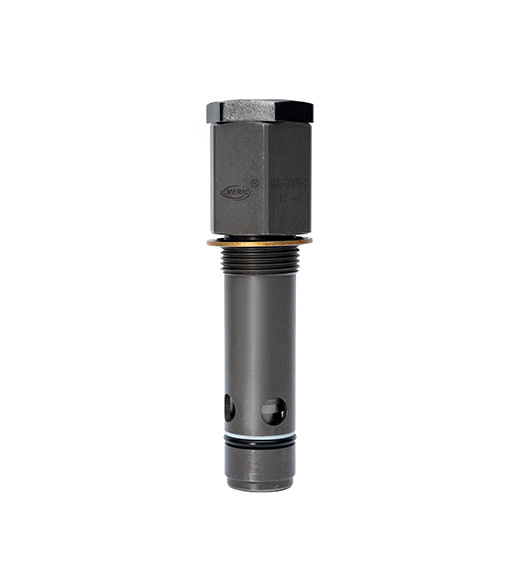

The valve prevents flow from ① to ② until the set crack pressure at ① is
achieved.The poppet then unseat allowing flow from ① to ②
protecting the circuit from over pressurization.
