Category:

Cartridge valve

Directional valve

方向阀


MCV2-M221.5


Features Hardened,precision ground parts for durability Industry common cavity Compact size Low leakage design


You can send us an email:

sales1@meric.cn

sales2@meric.cn

Product Details


MCV-M221.5MCV-M221.5

Specifications
Operating Pressure 207BAR
Flow 50L/min
Internal Leakage 5drop/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)

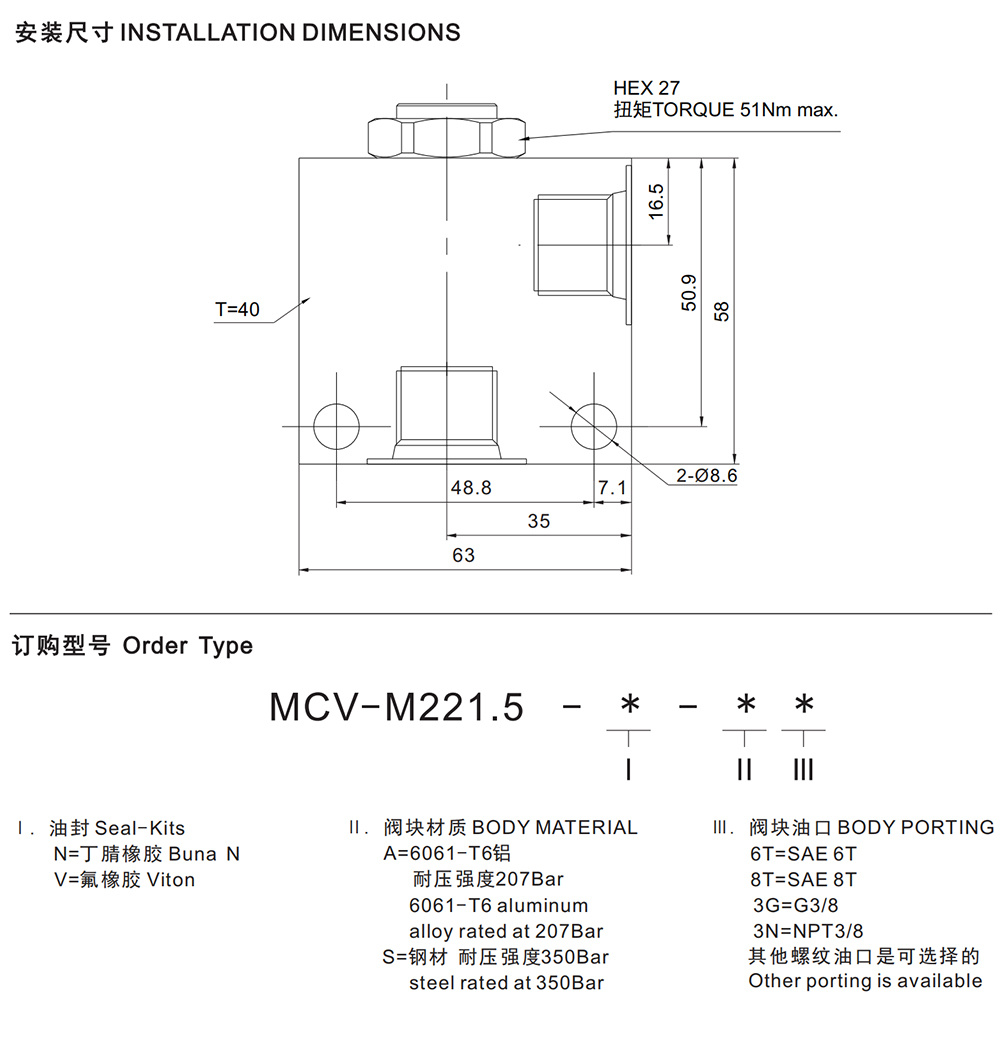

Cavity CV-M221.5 see page K-31
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
Hardened,precision ground parts for durability
Industry common cavity
Compact size
Low leakage design
Operation
Pressure at overcomes the spring-bias poppet and allows
free flow to .Flow in the opposite direction,from to ,
is blocked by the poppet.
