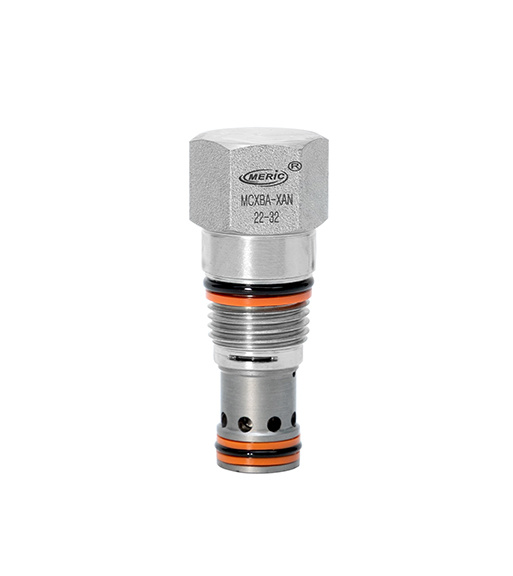

MCXBA

Features Hardened,precision ground parts for durability Industry common cavity Compact size （0.07cc/min） Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min). Will accept 5000 psi (350 bar) at ports 1 and 2

You can send us an email：

Product Details

MCXBA MCXBA

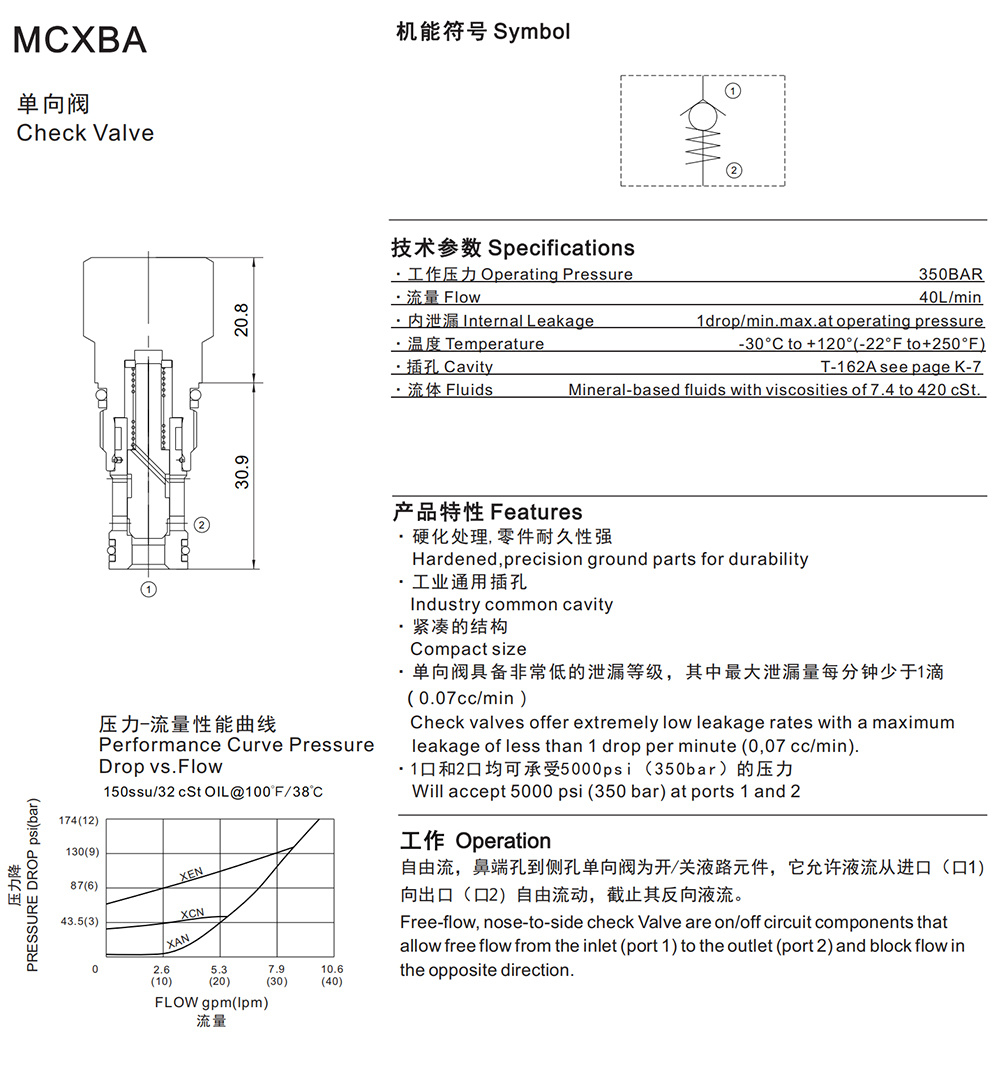

Specifications

Operating Pressure 350BAR

Flow 40L/min

Internal Leakage 1drop/min.max.at operating pressure

Temperature -30°C to +120°(-22°F to+250°F)

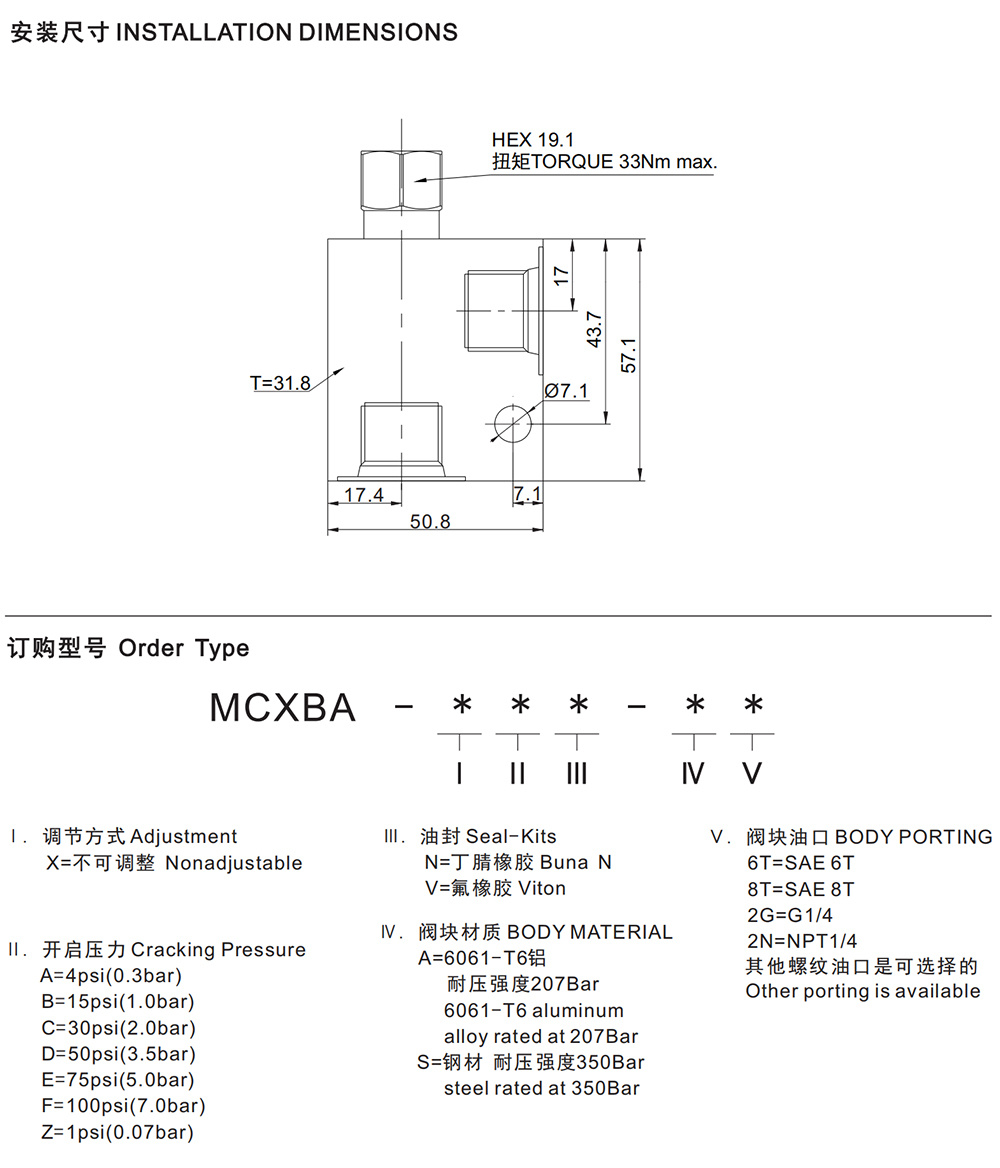

Cavity T-162A see page K-7

流体 Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Compact size

（0.07cc/min）

Check valves offer extremely low leakage rates with a maximum

leakage of less than 1 drop per minute (0,07 cc/min).

Will accept 5000 psi (350 bar) at ports 1 and 2

Operation

Free-flow, nose-to-side check Valve are on/off circuit components that

allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in

the opposite direction.

None
