Category:
Cartridge valve
Pressure control valve
Relief valve

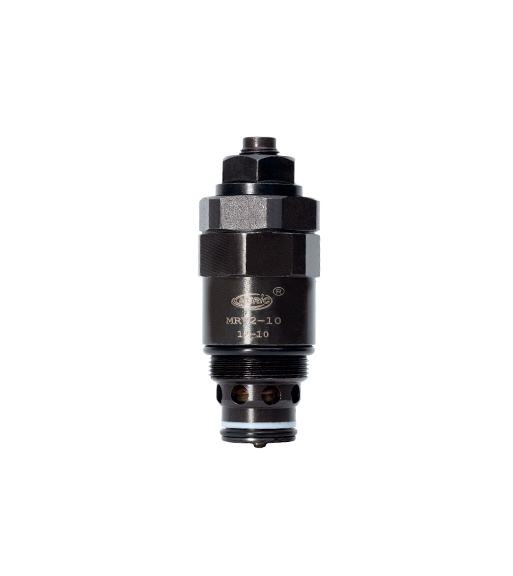

MRV2-10
Features Hardened,precision ground parts for durability Compact size Adjustment may be locked in place Fast response to pressure surges
You can send us an email:
Product Details
Specifications
Operating Pressure 315BAR
Flow 45.6L/min
Internal Leakage 5drops/min.max.to 80% of norminal setting
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity T-2303 see page K-18
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
Hardened,precision ground parts for durability
Compact size
Adjustment may be locked in place
Fast response to pressure surges
Operation
The valve prevents flow from ① to ② until the set crack pressure at ① is
achieved.The poppet then unseat allowing flow from ① to ②
protecting the circuit from over pressurization.
