MIFC-6T

Features Hardened,precision ground parts for durability Compact size modulated response

You can send us an email：

sales1@meric.cn

sales2@meric.cn

Product Details

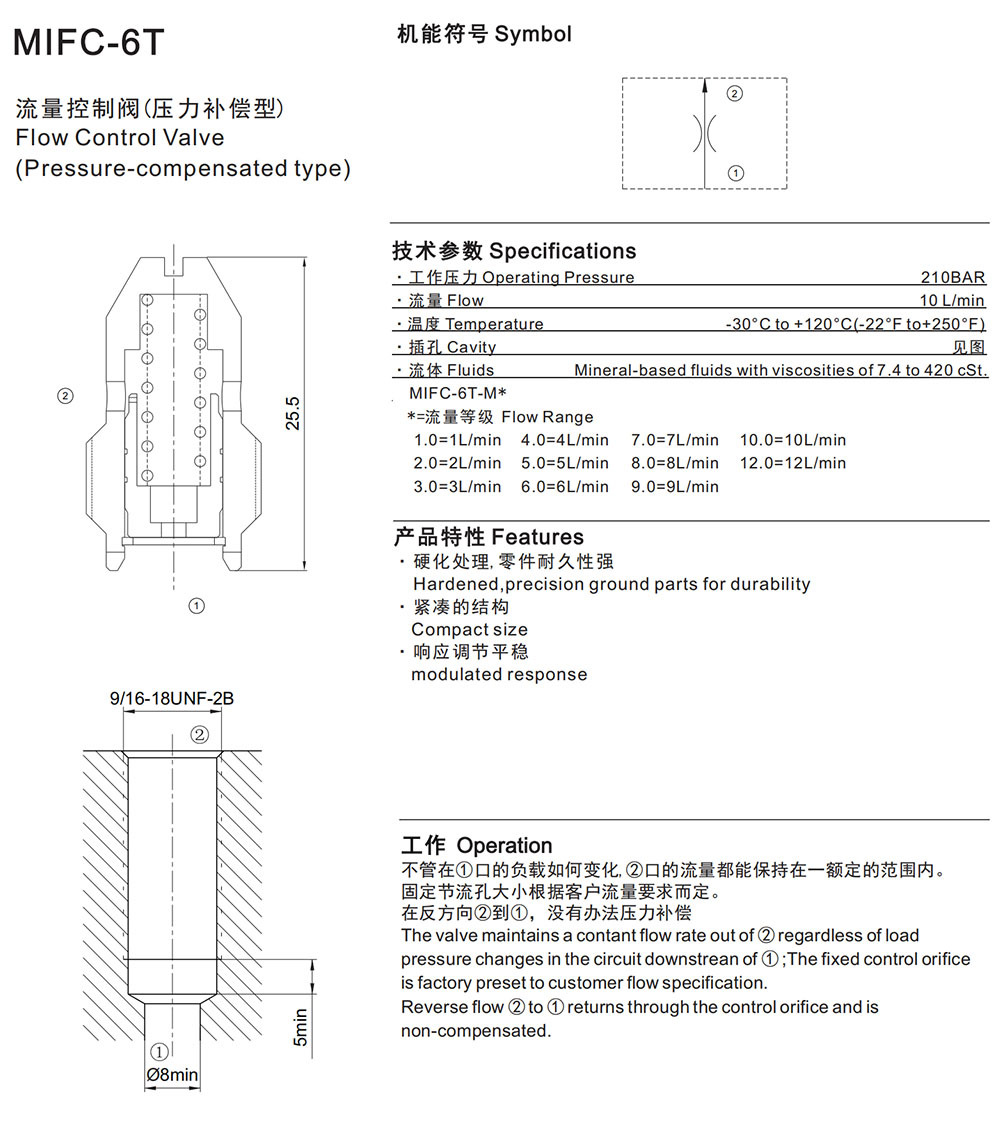

MIFC-6T

Specifications

Operating Pressure 210BAR

Flow 10 L/min

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

MIFC-6T-M*

Flow Range

1.0=1L/min 4.0=4L/min 7.0=7L/min 10.0=10L/min

2.0=2L/min 5.0=5L/min 8.0=8L/min 12.0=12L/min

3.0=3L/min 6.0=6L/min 9.0=9L/min

Features

Hardened,precision ground parts for durability

Compact size

modulated response

Operation

The valve maintains a contant flow rate out of ② regardless of load

pressure changes in the circuit downstrean of ① ;The fixed control orifice

is factory preset to customer flow specification.

Reverse flow ② to ① returns through the control orifice and is

non-compensated.
