Operating Pressure 250BAR
Internal Leakage 0.3drops/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)

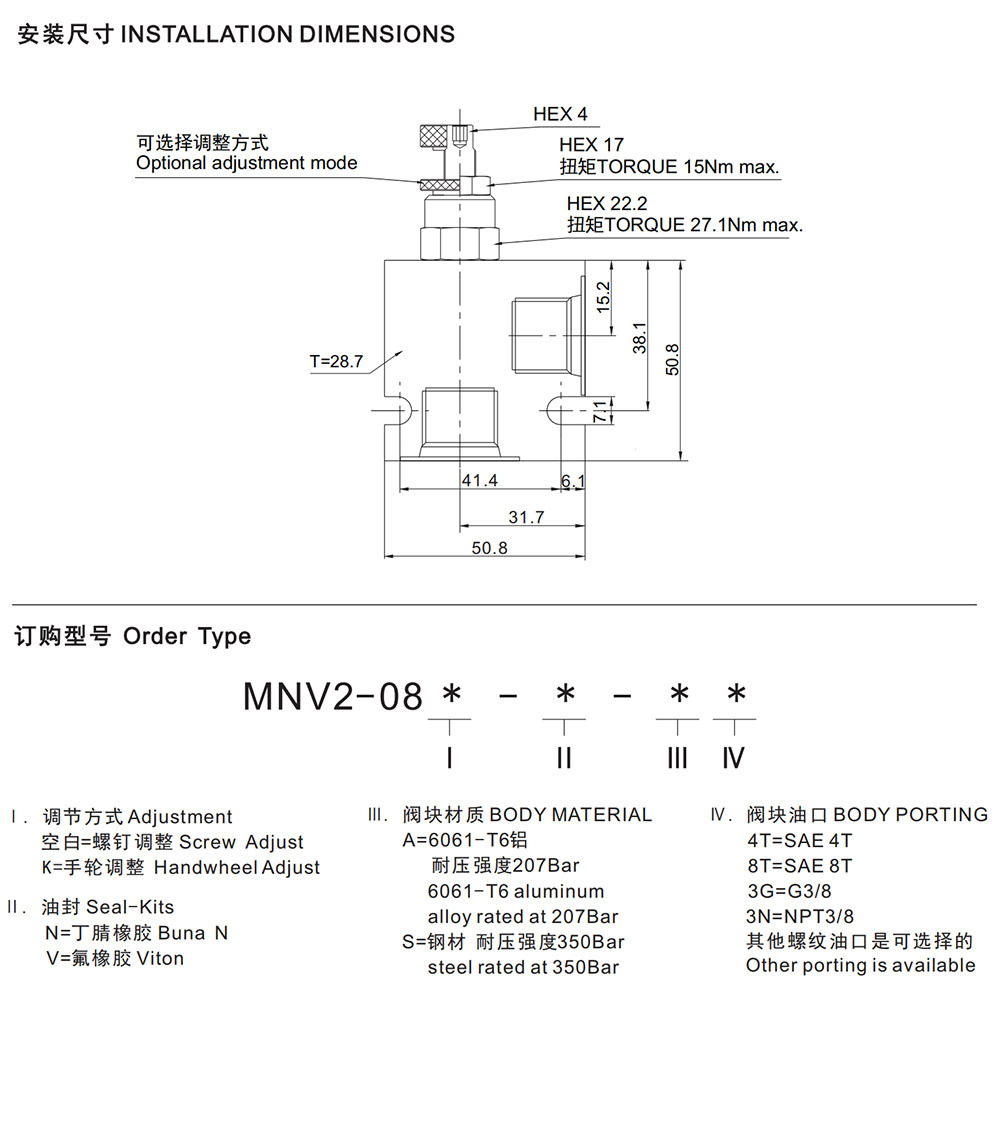

Cavity 08-2 see page K-9
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Hardened,precision ground parts for durability
Industry common cavity
Adjustment may be locked in place.
The valve varies flow restriction by adjusting needle in or out and will shut off
when fully closed. These Valves will meter flow in either direction.
