MSVL-G38-N

Specifications Operating Pressure 350BAR Flow 40L/min Internal Leakage 5drop/min.max.to 80% of norminal setting Standard Spring Ranges: 0-350BAR Temperature -30°C to +120°C(-22°F to+250°F) Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

You can send us an email：

Product Details

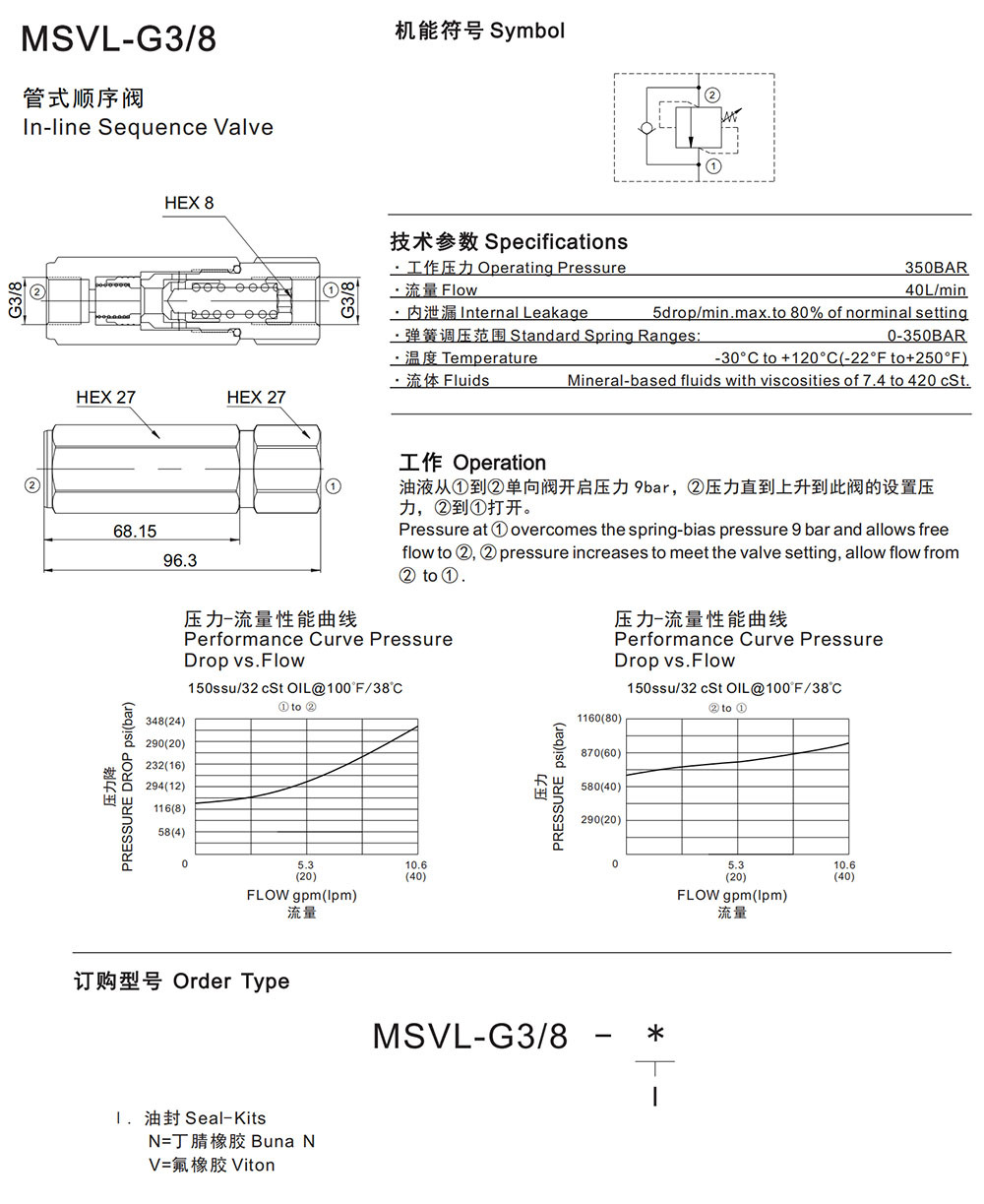

MSVL-G3/8

Specifications

Operating Pressure 350BAR

Flow 40L/min

Internal Leakage 5drop/min.max.to 80% of norminal setting

Standard Spring Ranges: 0-350BAR

Temperature -30°C to +120°C(-22°F to+250°F)

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Operation

Pressure at ① overcomes the spring-bias pressure 9 bar and allows free

flow to ②, ② pressure increases to meet the valve setting, allow flow from

② to ① .
