Solenoid control valve

二位四通

Cartridge valve


MSPC-10-4


Features Hardened,precision ground parts for durability Industry common cavity Efficient wet-armature construction Continuous-duty solenoid Compact size


You can send us an email:

sales1@meric.cn

sales2@meric.cn

Product Details

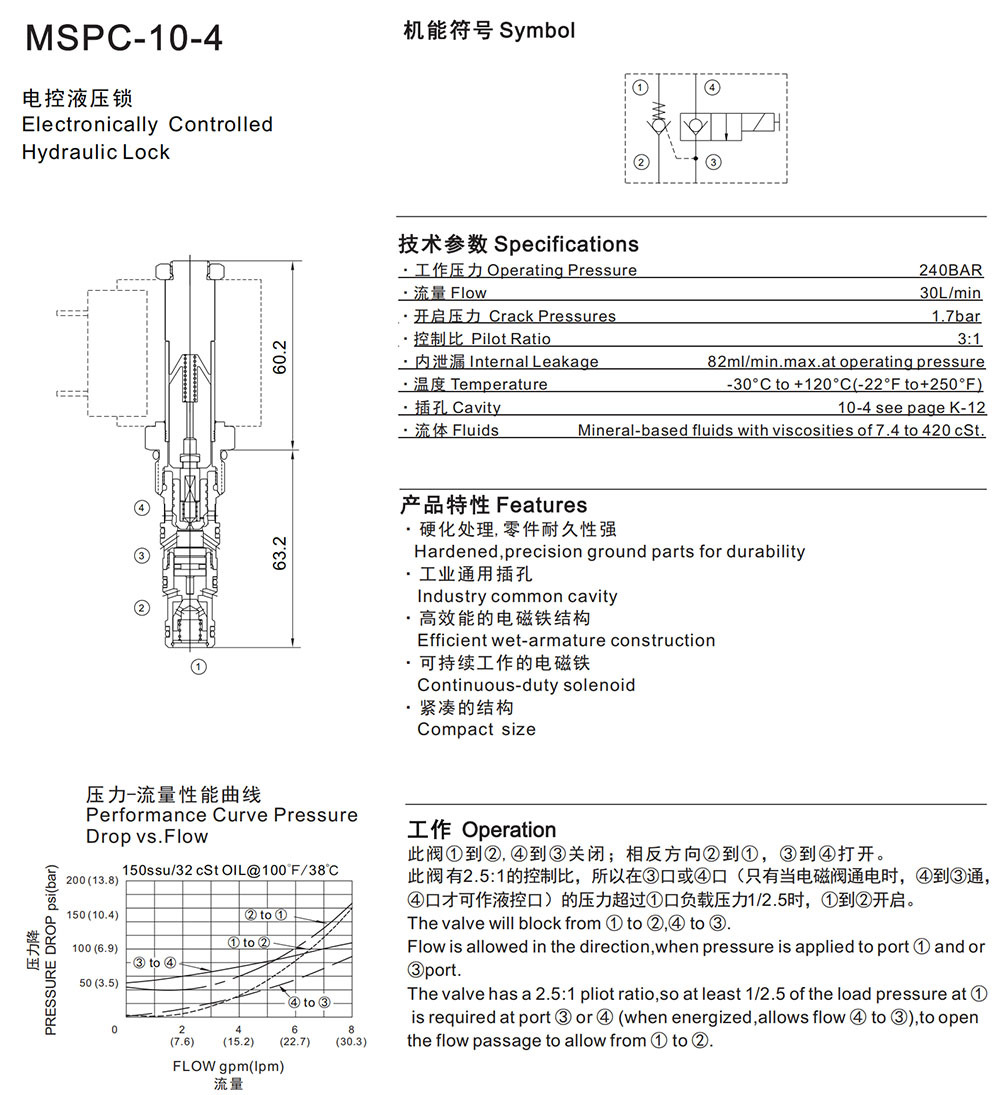

MSPC-10-4MSPC-10-4

Specifications
Operating Pressure 240BAR
Flow 30L/min
Crack Pressures 1.7bar
Pilot Ratio 3:1
Internal Leakage 82ml/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity 10-4 see page K-12
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
Hardened,precision ground parts for durability
Industry common cavity
Efficient wet-armature construction
Continuous-duty solenoid
Compact size
Operation
Flow is allowed in the direction,when pressure is applied to port and or
port.
The valve has a 2.5:1 pliot ratio,so at least 1/2.5 of the load pressure at
is required at port or (when energized,allows flow to ),to open
the flow passage to allow from to .
