MSEV-S08-560-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Solenoid control valve

二位三通

Cartridge valve

MSEV-S08-560

Features Hardened,precision ground parts for durability Industry common cavity Efficient wet-armature construction Continuous-duty solenoid Compact size

You can send us an email：

Product Details

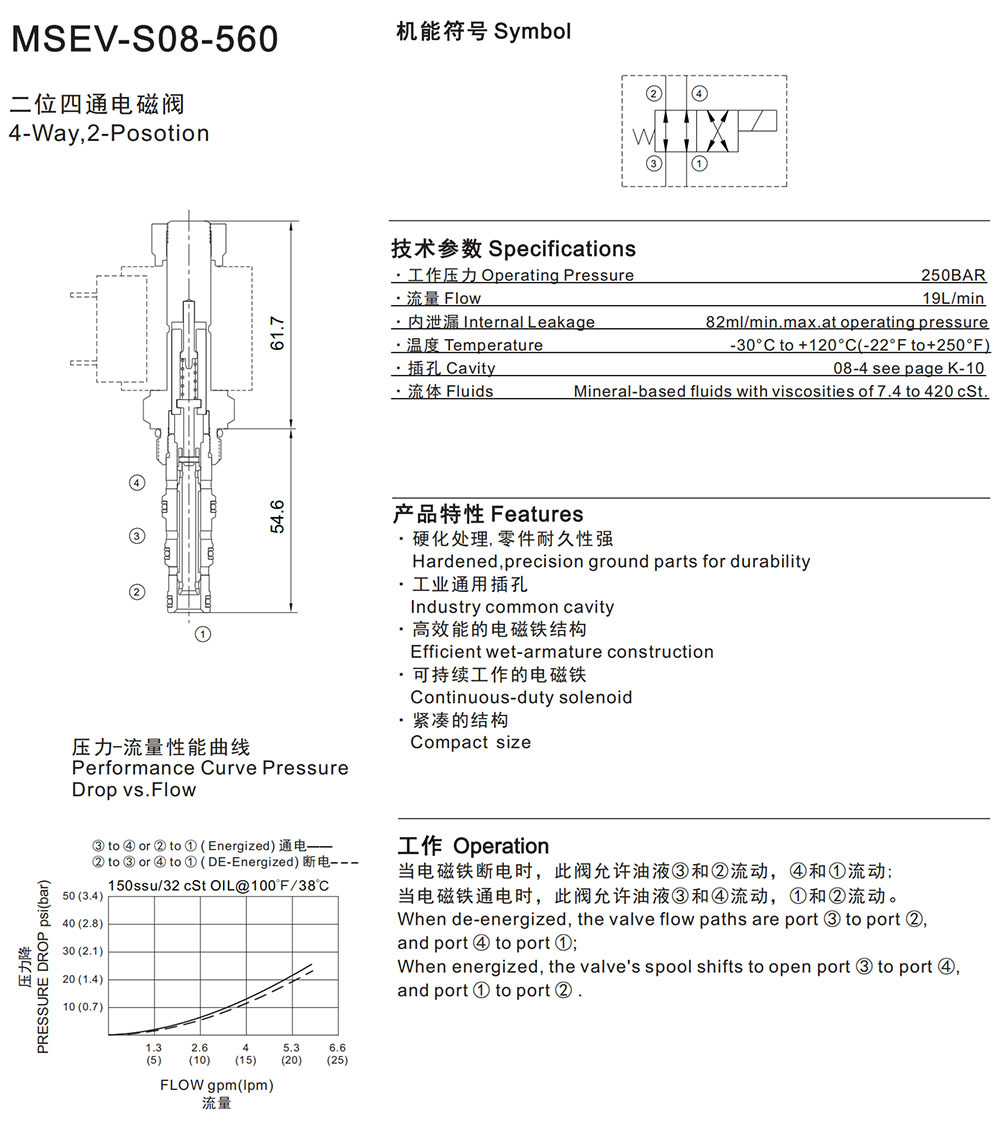

MSEV-S08-560

Specifications

Operating Pressure 250BAR

Flow 19L/min

Internal Leakage 82ml/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 08-4 see page K-10

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Efficient wet-armature construction

Continuous-duty solenoid

Compact size

Operation

When de-energized, the valve flow paths are port ③ to port ②,

and port ④ to port ①;

When energized, the valve's spool shifts to open port ③ to port ④,

and port ① to port ② .

None
