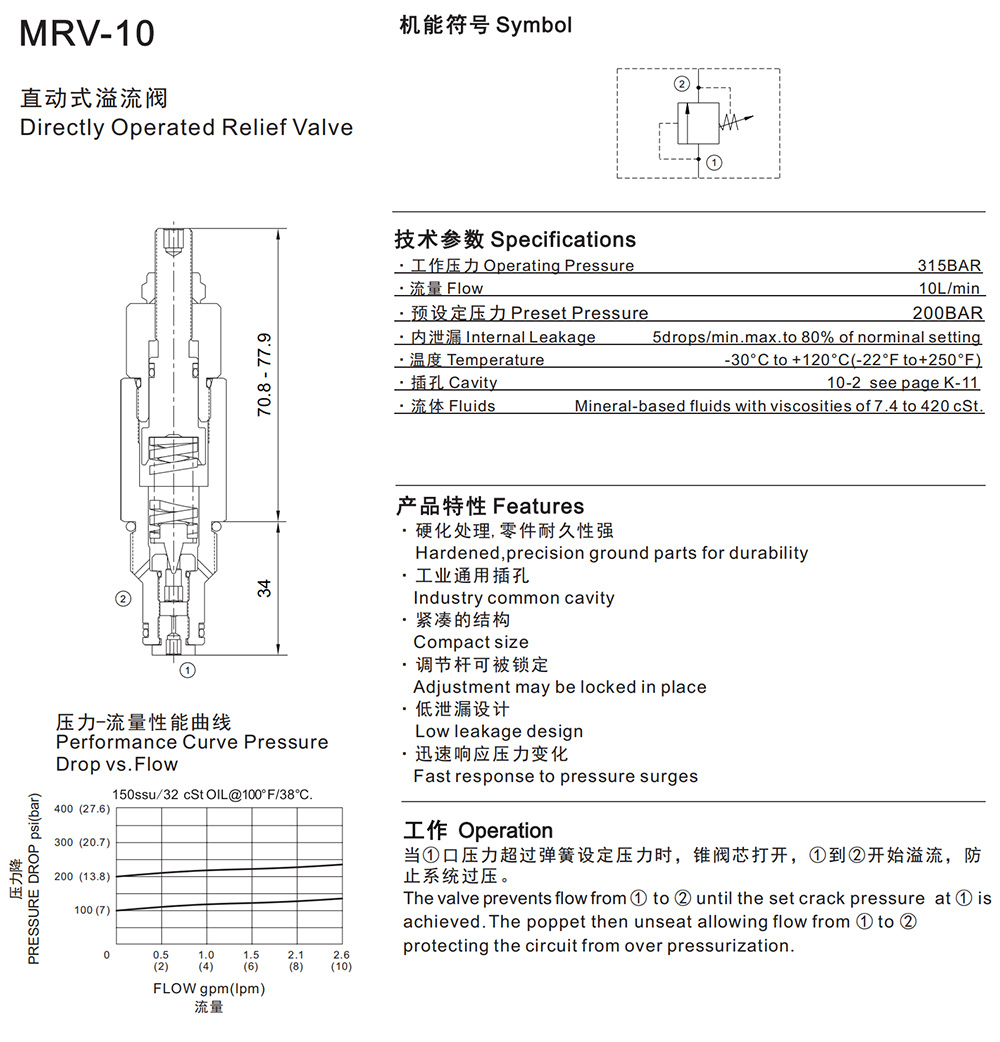

MRV-10

Specifications

Operating Pressure : 315BAR

Flow : 10L/min

Preset Pressure : 200BAR

Internal Leakage: 5drops/min.max.to 80% of norminal setting

Temperature : -30°C to +120°C(-22°F to+250°F)

Cavity : 10-2 see page K-11

Fluids : Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Compact size

Adjustment may be locked in place

Low leakage design

Fast response to pressure surges

Operation

The valve prevents flow from ① to ② until the set crack pressure at ① is

achieved.The poppet then unseat allowing flow from ① to ②

protecting the circuit from over pressurization.
