MWK08D-01-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Solenoid control valve

二位三通

MWK08D-01

Features Hardened,precision ground parts for durability Industry common cavity Efficient wet-armature construction Continuous-duty solenoid Compact size

You can send us an email：

Product Details

MWK08D-01

Specifications

Operating Pressure 350BAR

Flow 19L/min

Internal Leakage 90ml/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 08-3 see page K-9

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Efficient wet-armature construction

Continuous-duty solenoid

Compact size

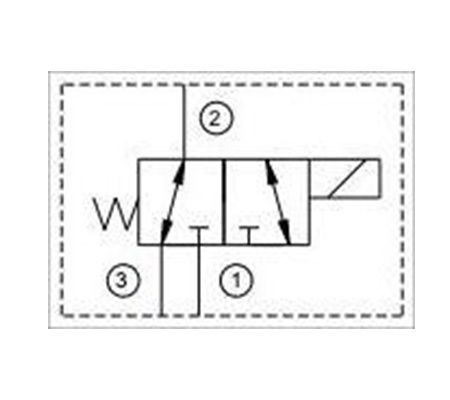

Operation

When de-energized, the valve allows flow from port ② to port ③ or from

port ③ to port ② free mobility , while blocking flow at port ①;

When energized, the valve's spool shifts open from port ① to port ② or

from port ② to port ① , while blocking flow at port ③
