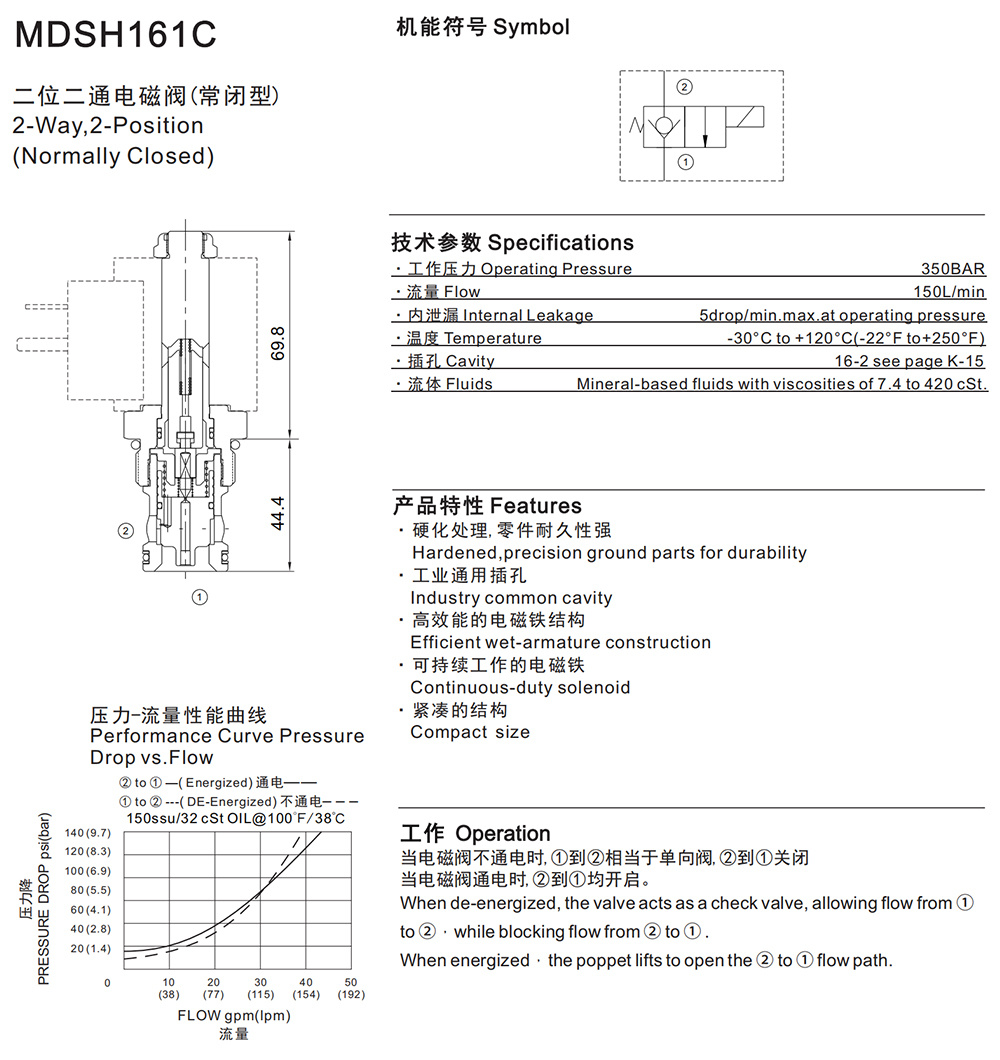

Operating Pressure 350BAR
Internal Leakage 5drop/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity 16-2 see page K-15
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Hardened,precision ground parts for durability
Industry common cavity
Efficient wet-armature construction
When de-energized, the valve acts as a check valve, allowing flow from ①
to ②，while blocking flow from ② to ① .
When energized，the poppet lifts to open the ② to ① flow path.
