MSV-08-2NCSPL-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Solenoid control valve

二位二通

MSV-08-2NCSPL

Features Hardened,precision ground parts for durability Industry common cavity Efficient wet-armature construction Continuous-duty solenoid Compact size

You can send us an email：

Product Details

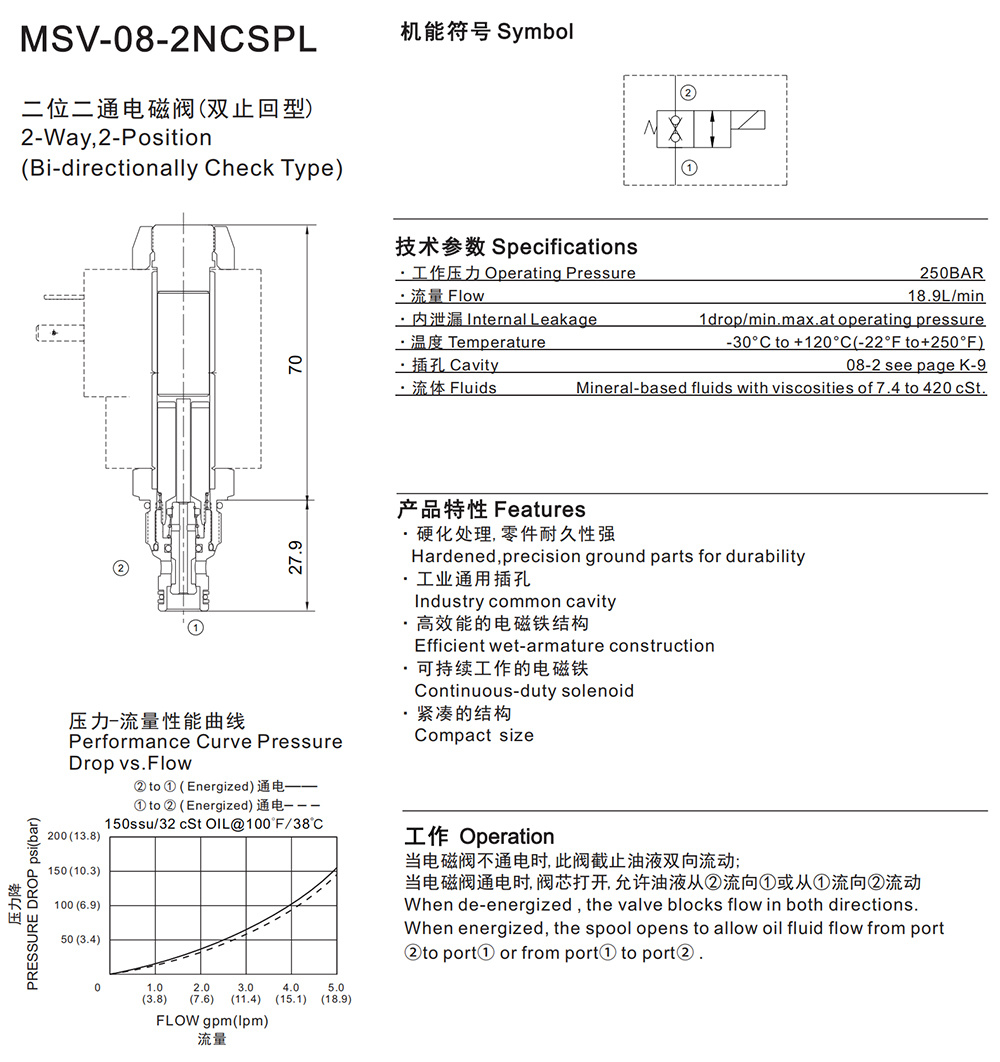

MSV-08-2NCSPL

Specifications

Operating Pressure 250BAR

Flow 18.9L/min

Internal Leakage 1drop/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

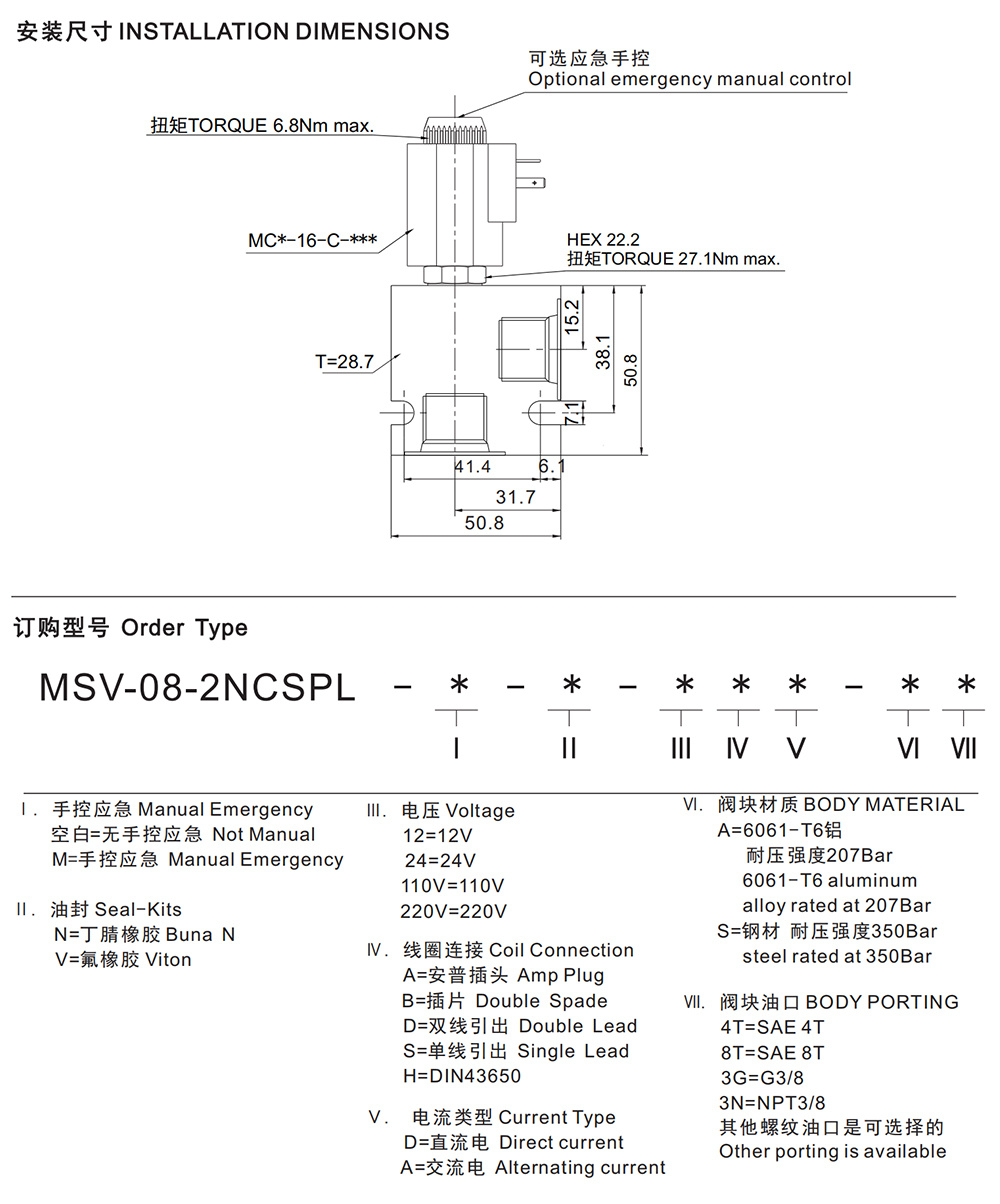

Cavity 08-2 see page K-9

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Efficient wet-armature construction

Continuous-duty solenoid

Compact size

Operation

When de-energized , the valve blocks flow in both directions.

When energized, the spool opens to allow oil fluid flow from port

②to port① or from port① to port② .
