MDRBC

Features Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be usable as a work port in circuit. If this is a consideration, the 4 port version of this valve may be a solution Because using direct-acting design,these valve hare low internal leakage and low pilot flow loss features.

You can send us an email：

sales1@meric.cn

sales2@meric.cn

MESSAGE

Product Details

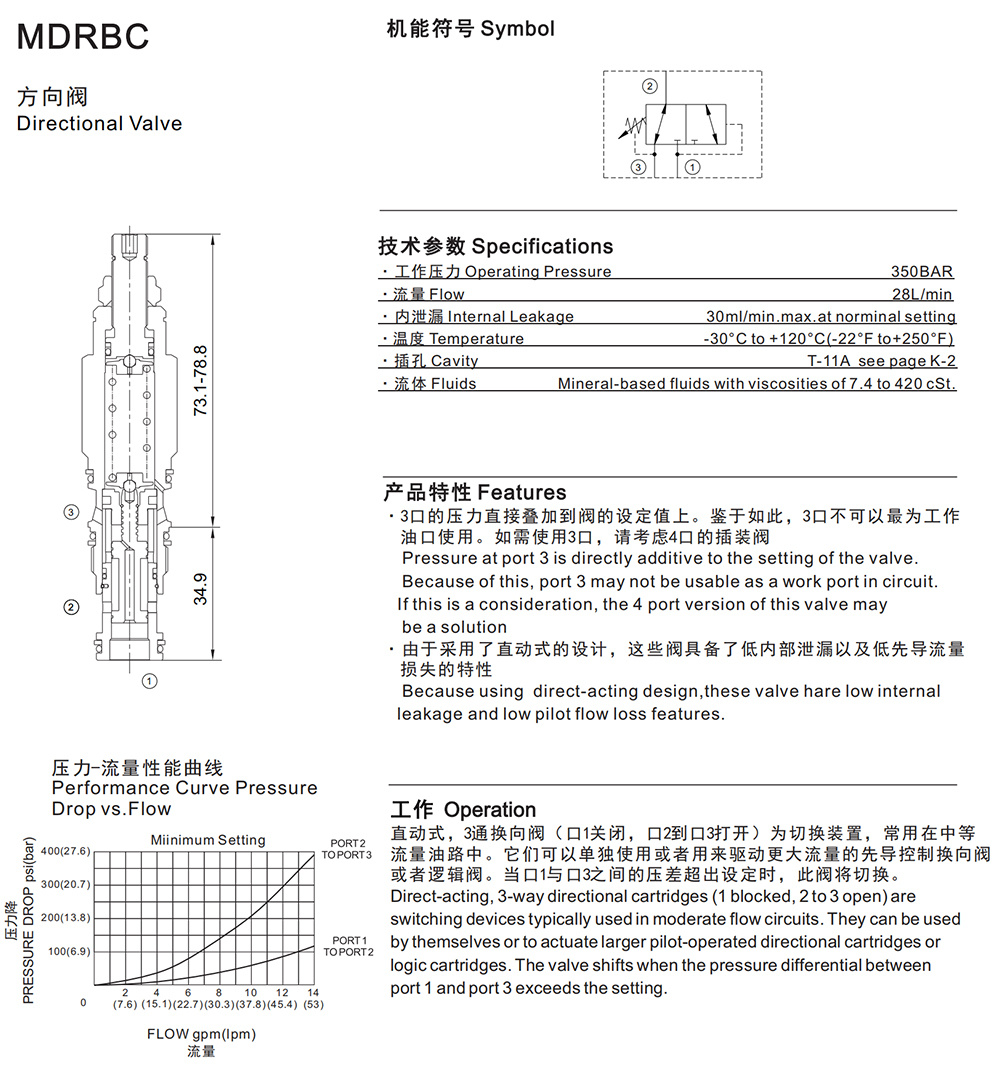

MDRBC MDRBC

Specifications

Operating Pressure 350BAR

Flow 28L/min

Internal Leakage 30ml/min.max.at norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity T-11A see page K-2

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Pressure at port 3 is directly additive to the setting of the valve.

Because of this, port 3 may not be usable as a work port in circuit.

If this is a consideration, the 4 port version of this valve may

be a solution

Because using direct-acting design,these valve hare low internal

leakage and low pilot flow loss features.

Operation

Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are

switching devices typically used in moderate flow circuits. They can be used

by themselves or to actuate larger pilot-operated directional cartridges or

logic cartridges. The valve shifts when the pressure differential between

port 1 and port 3 exceeds the setting.

None
