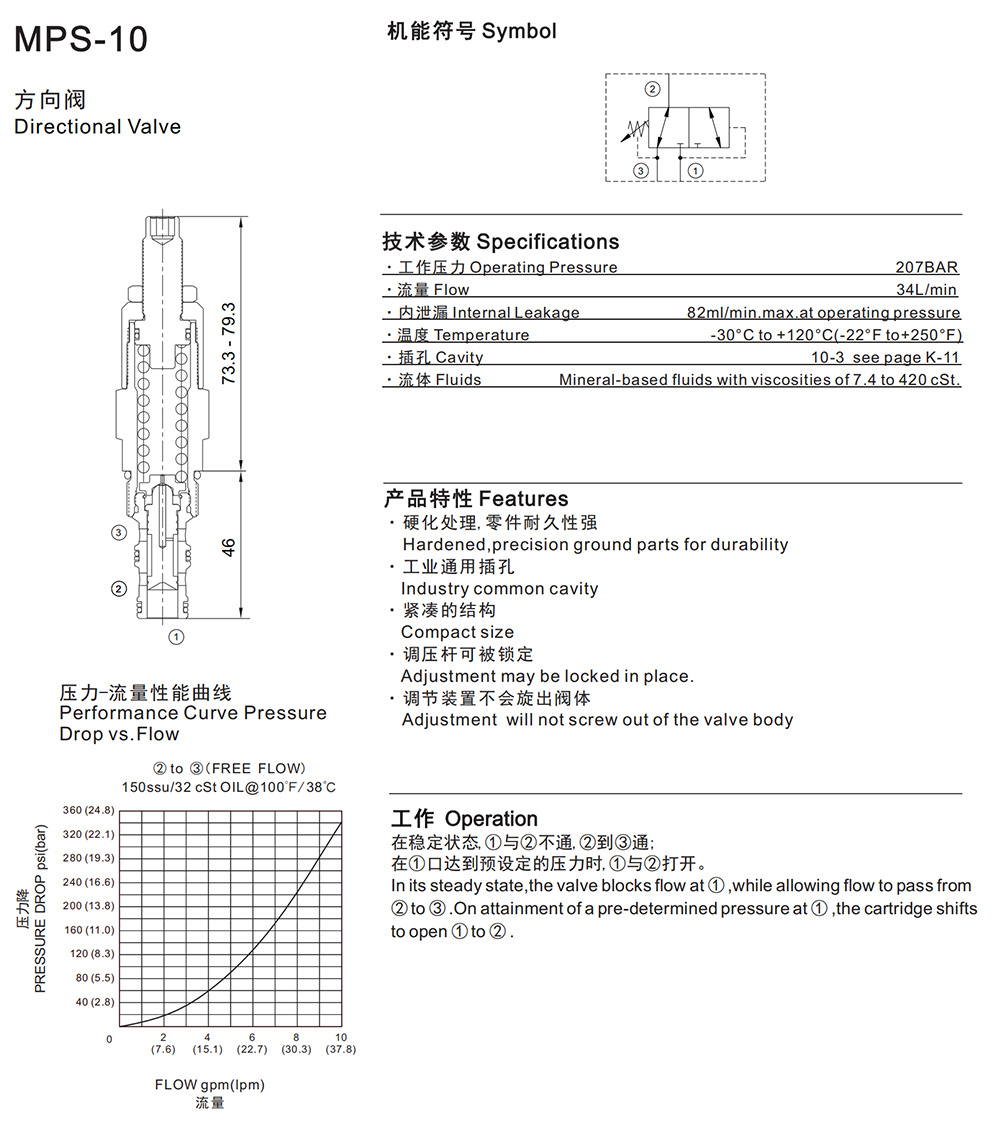

Operating Pressure 207BAR
Internal Leakage 82ml/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity 10-3 see page K-11
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Hardened,precision ground parts for durability
Industry common cavity
Adjustment may be locked in place.
Adjustment will not screw out of the valve body
In its steady state,the valve blocks flow at ① ,while allowing flow to pass from
② to ③ .On attainment of a pre-determined pressure at ① ,the cartridge shifts
to open ① to ② .
