MSQV08-3-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Directional valve

MSQV08-3

Features Hardened,precision ground parts for durability Industry common cavity Compact size Adjustment may be locked in place. Adjustment will not screw out of the valve body

You can send us an email：

Product Details

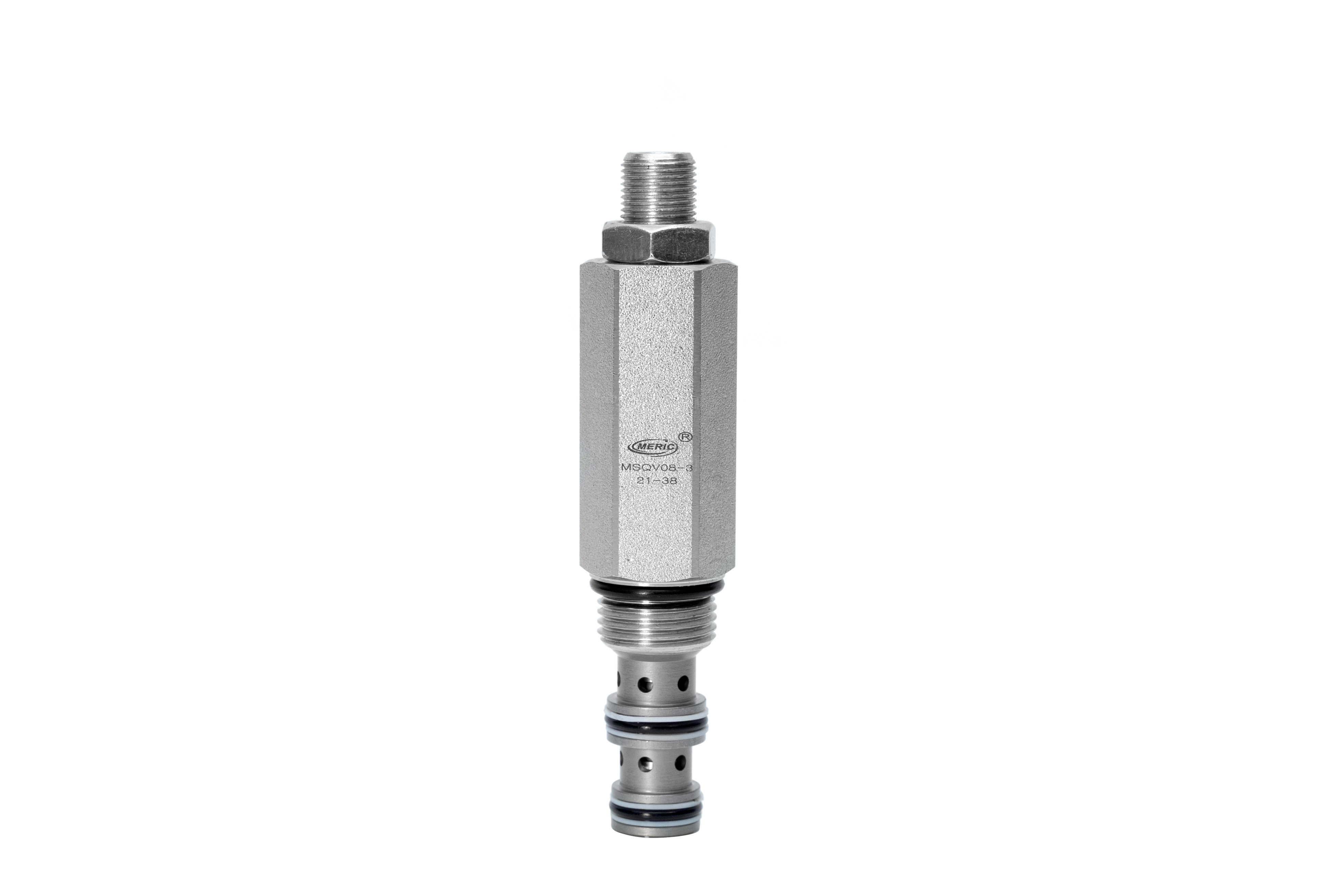

MSQV08-3

Specifications

Operating Pressure 240BAR

Flow 22.7L/min

Internal Leakage 20ml/min.max.at operating pressure

Temperature -30°C to +120°(-22°F to+250°F)

Cavity 08-3 see page K-9

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Compact size

Adjustment may be locked in place.

Adjustment will not screw out of the valve body

Operation

In its steady state,the valve blocks flow at ① ,while allowing flow to pass from

② to ③ .On attainment of a pre-determined pressure at ① ,the cartridge shifts

to open ① to ② .
