Category:

Directional valve

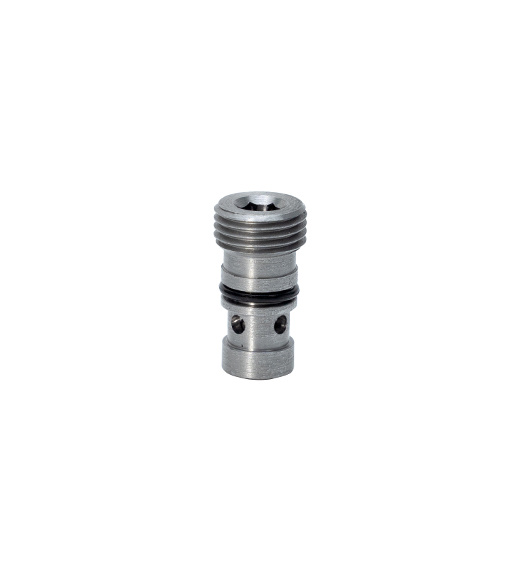

MSLV2-G18


Features Hardened,precision ground parts for durability Compact size Rapid response to load direction changes.


You can send us an email:

sales1@meric.cn

sales2@meric.cn

Product Details


MSLV2-G18

Specifications
Operating Pressure 350BAR
Flow 10L/min
Internal Leakage 5drops/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
Hardened,precision ground parts for durability
Compact size
Rapid response to load direction changes.
Operation
The valve will allow flow from the higer pressure of or port to the port.
The valve is commonly used to direct oil from the pressure side of a
bidirectional hydraulic motor to a pressure-released hydraulic brake
