MLS10-30

Features Hardened,precision ground parts for durability Compact size Rapid response to load direction changes.

You can send us an email：

Product Details

MLS10-30

Specifications

Operating Pressure 240BAR

Flow 30L/min

Internal Leakage 0.25ml/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

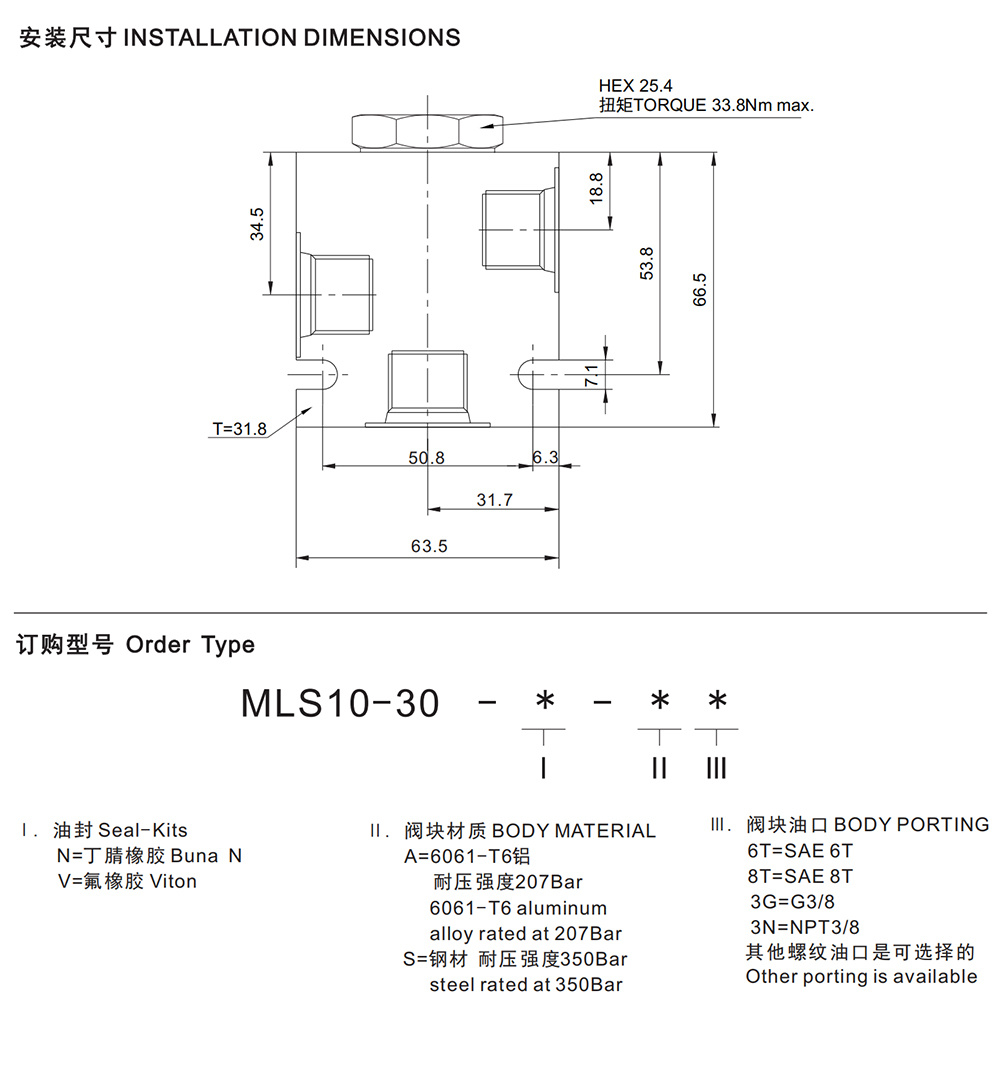

Cavity 10-3 see page K-11

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Compact size

Rapid response to load direction changes.

Operation

The valve will allow flow from the higer pressure of ① or ③ port to the ② port.

The valve is commonly used to direct oil from the pressure side of a

bidirectional hydraulic motor to a pressure-released hydraulic brake
