MZYF25-01-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Cartridge valve

Pressure control valve

Relief valve

MZYF25-01

Features Hardened,precision ground parts for durability Compact size Adjustment may be locked in place Fast response to Pressure surges

You can send us an email：

Product Details

MZYF25-01

Specifications

Operating Pressure 280BAR

Flow 150L/min

Internal Leakage 3ml/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

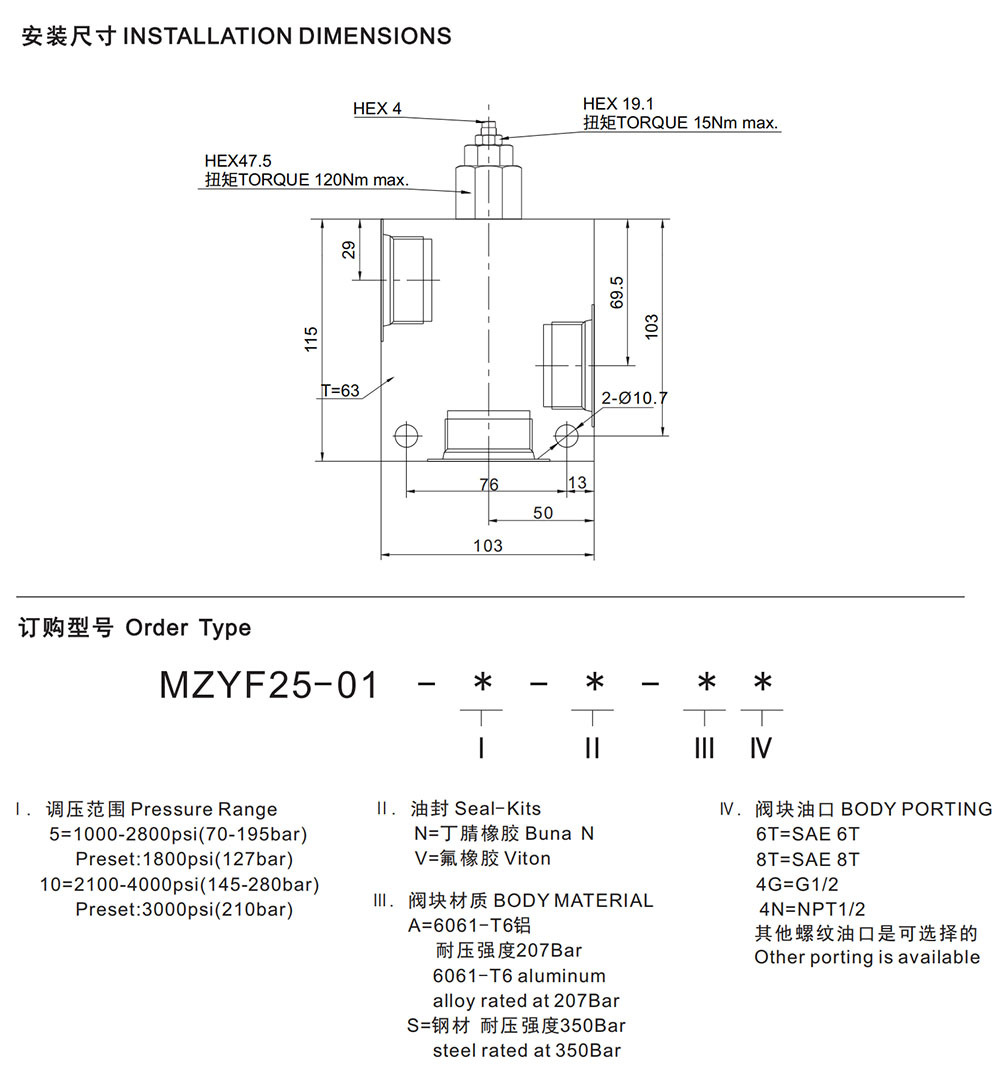

Cavity T-2502 see page K-20

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Compact size

Adjustment may be locked in place

Fast response to Pressure surges

Operation

The valve prevents flow from ② to ③ until the set crack pressure at ② is

achieved.The poppet then unseat allowing flow from ② to ③

protecting the circuit from over pressurization.

None

Related Products

MADRV2-08-33

MBVE-R1-N
