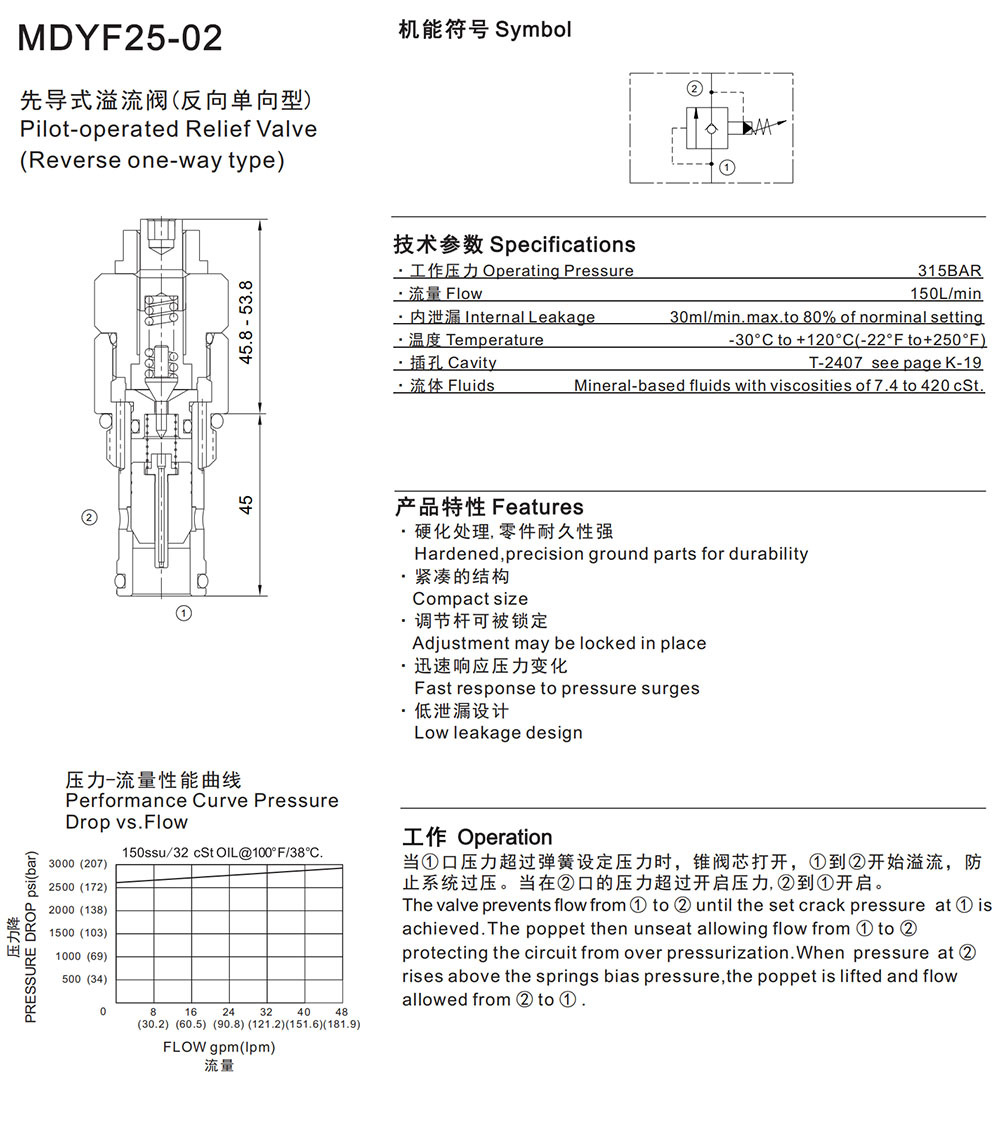

Operating Pressure 315BAR
Internal Leakage 30ml/min.max.to 80% of norminal setting
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity T-2407 see page K-19
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Hardened,precision ground parts for durability
Adjustment may be locked in place
Fast response to pressure surges
Low leakage design
The valve prevents flow from ① to ② until the set crack pressure at ① is
achieved.The poppet then unseat allowing flow from ① to ②
protecting the circuit from over pressurization.When pressure at ②
rises above the springs bias pressure,the poppet is lifted and flow
allowed from ② to ① .
