MRV3-08S-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Cartridge valve

Pressure control valve

Relief valve

MRV3-08S

Features Hardened,precision ground parts for durability Compact size Adjustment may be locked in place Low leakage design Fast response to pressure surges

You can send us an email：

Product Details

MRV3-08S

Specifications

Operating Pressure 315BAR

Flow 18.9L/min

Internal Leakage 3ml/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

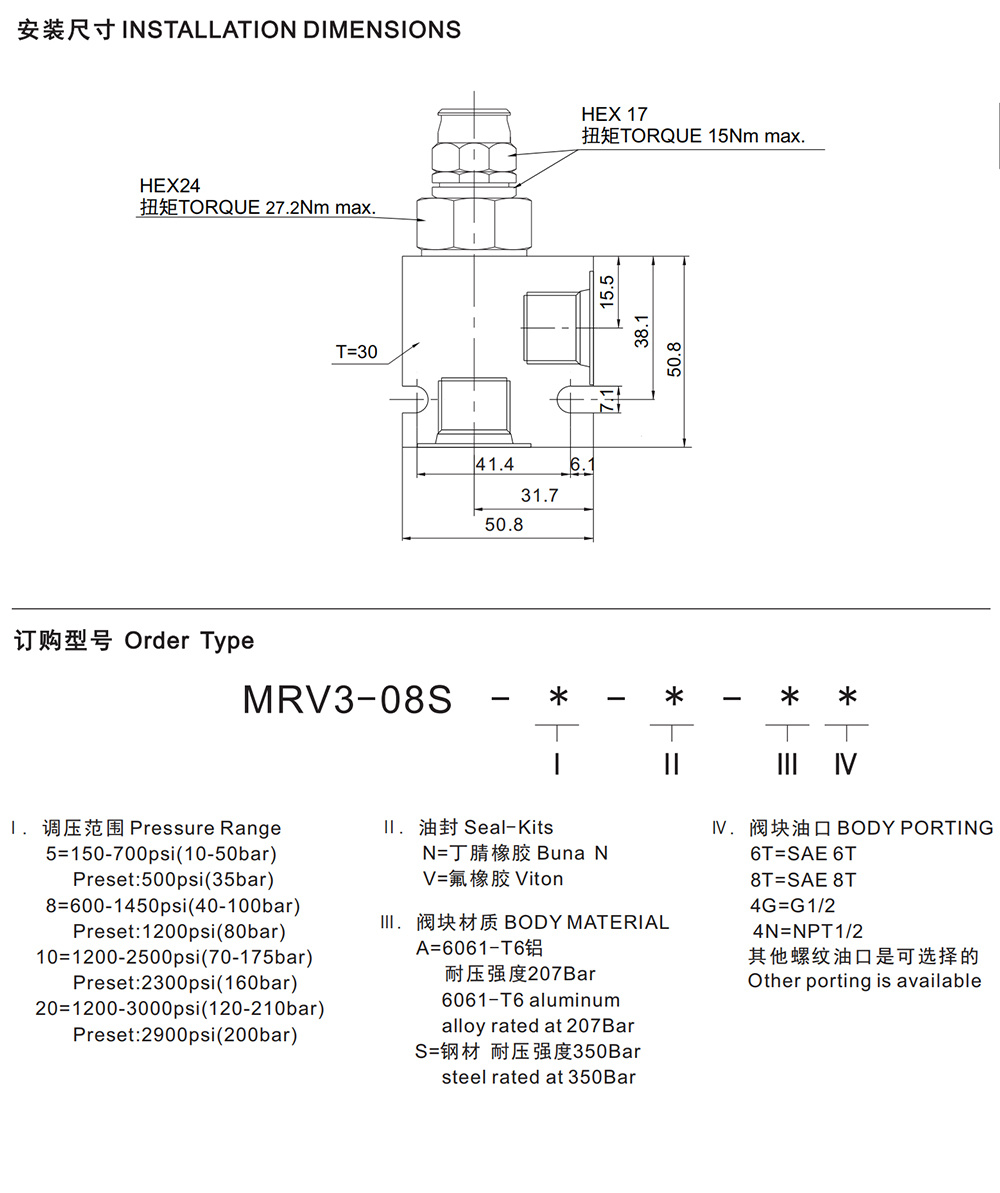

Cavity T-2106 see page K-16

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Compact size

Adjustment may be locked in place

Low leakage design

Fast response to pressure surges

Operation

The valve prevents flow from ① to ② until the set crack pressure at ① is

achieved.The poppet then unseat allowing flow from ① to ②

protecting the circuit from over pressurization.

None
