MSVL-G12-N-Wenzhou Meric Hydraulic Technology Co.,Ltd

Category：

Cartridge valve

Pressure control valve

Sequence valve

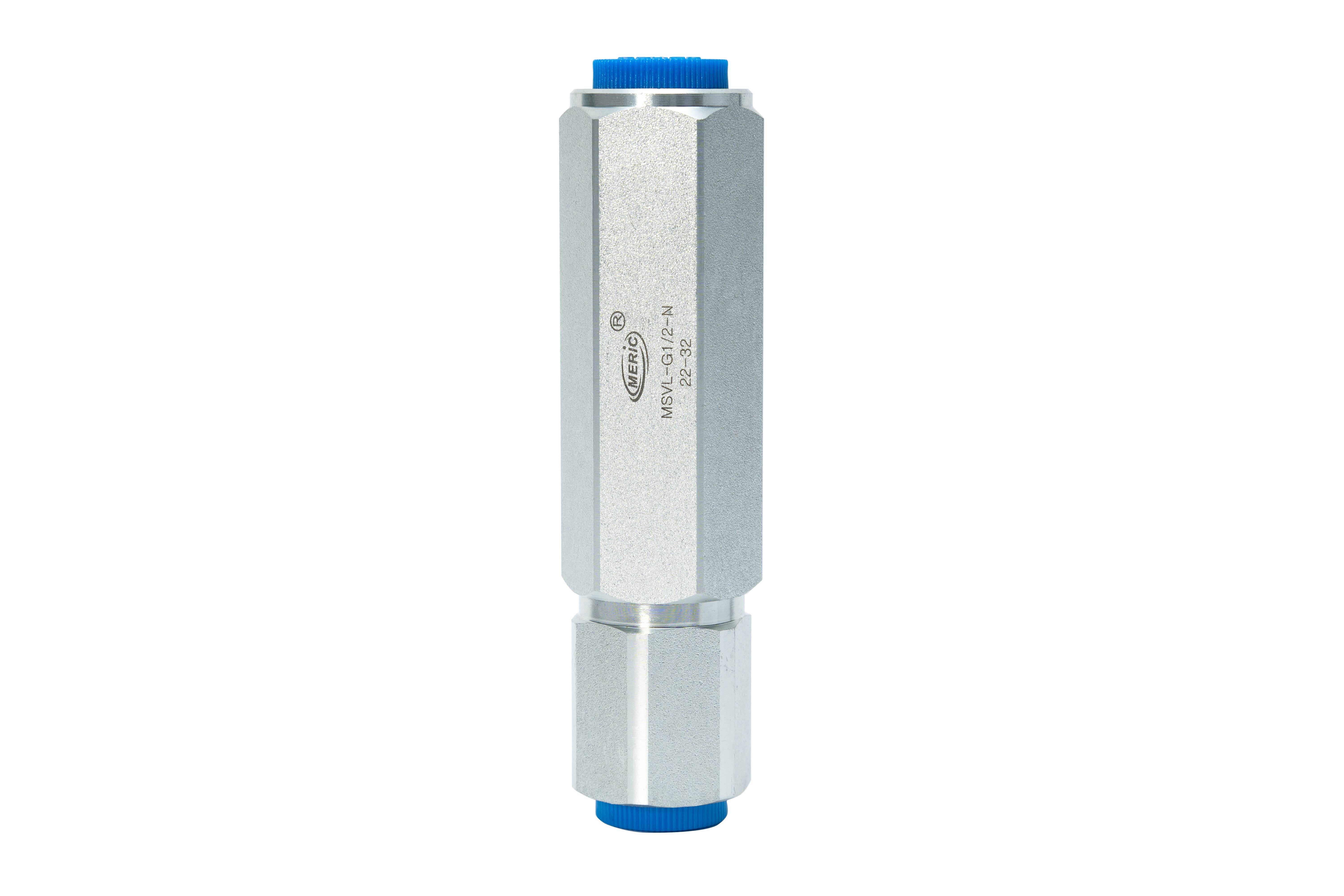

MSVL-G12-N

Specifications Operating Pressure 350BAR Flow 80L/min Internal Leakage 5drop/min.max.to 80% of norminal setting Standard Spring Ranges: 0-350BAR Temperature -30°C to +120°C(-22°F to+250°F) Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

You can send us an email：

Product Details

MSVL-G1/2

Specifications

Operating Pressure 350BAR

Flow 80L/min

Internal Leakage 5drop/min.max.to 80% of norminal setting

Standard Spring Ranges: 0-350BAR

Temperature -30°C to +120°C(-22°F to+250°F)

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Operation

Pressure at ① overcomes the spring-bias pressure 2 bar and allows free

flow to ②, ② pressure increases to meet the valve setting, allow flow from

② to ① .
