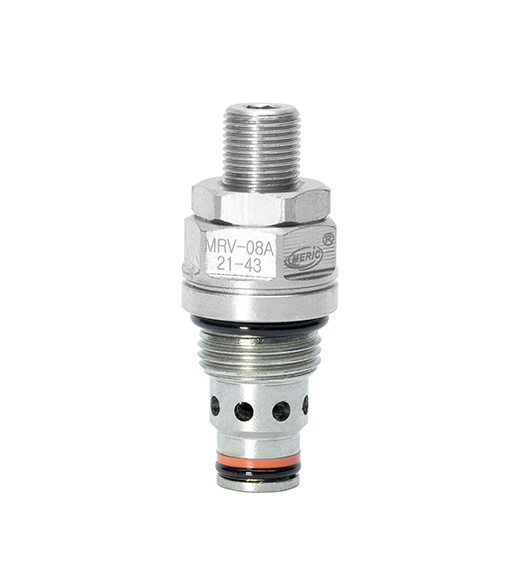

MRV-08A

Specifications Operating Pressure 250BAR Flow 10L/min Internal Leakage 5drps/min.max.to 80% of norminal setting Temperature -30°C to +120°C(-22°F to+250°F) Cavity 08-2 see page K-9 Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

You can send us an email：

Product Details

MRV-08A MRV-08A

Specifications

Operating Pressure 250BAR

Flow 10L/min

Internal Leakage 5drps/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 08-2 see page K-9

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Compact size

Adjustment may be locked in place

Low leakage design

Fast response to pressure surges

Operation

The valve prevents flow from ① to ② until the set crack pressure at ① is

achieved.The poppet then unseat allowing flow from ① to ②

protecting the circuit from over pressurization.
